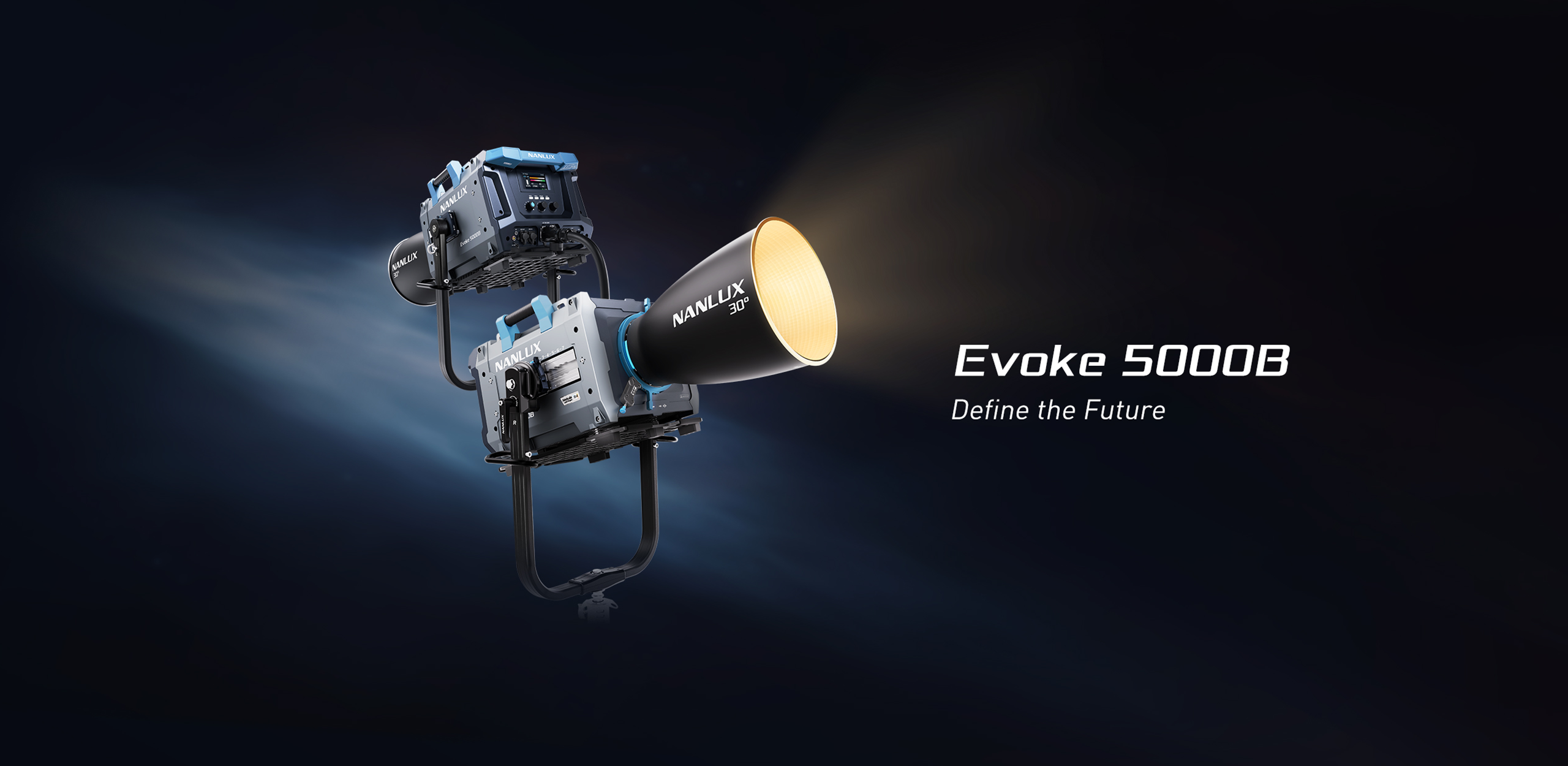

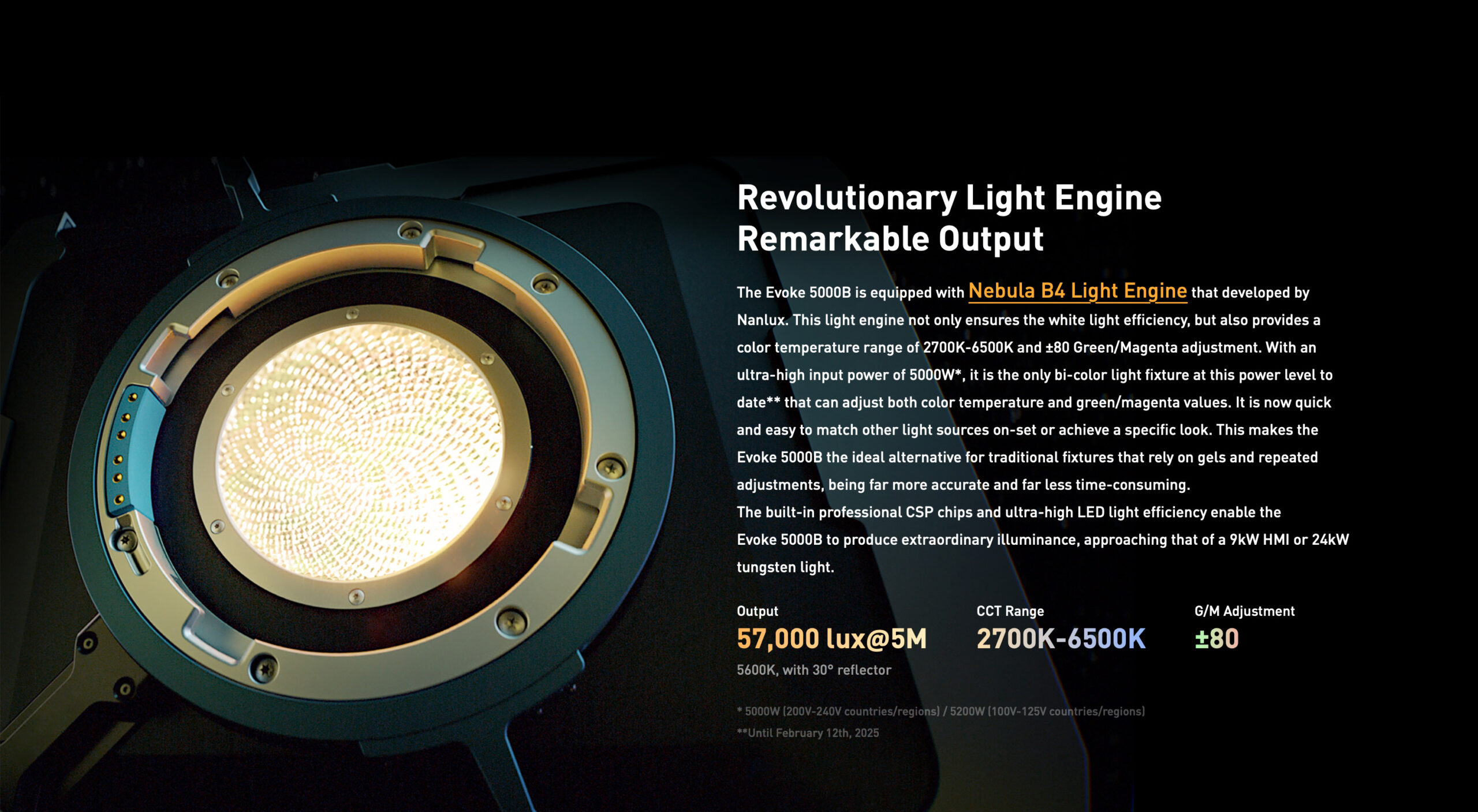

The Nanlux Evoke 5000B integrates an impressive output with 5000W power draw, a color temperature range of 2700K-6500K,
±80 Green/Magenta adjustment, excellent light quality, an IP66 rating, and the self-developed Nebula B4 Light Engine,

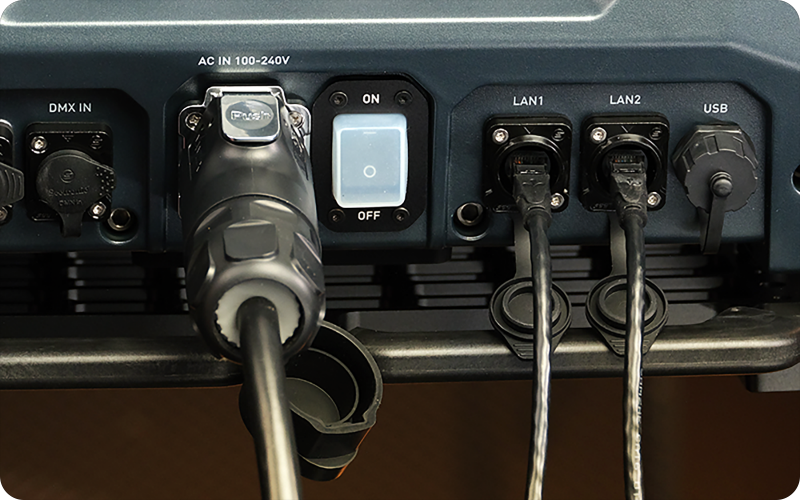

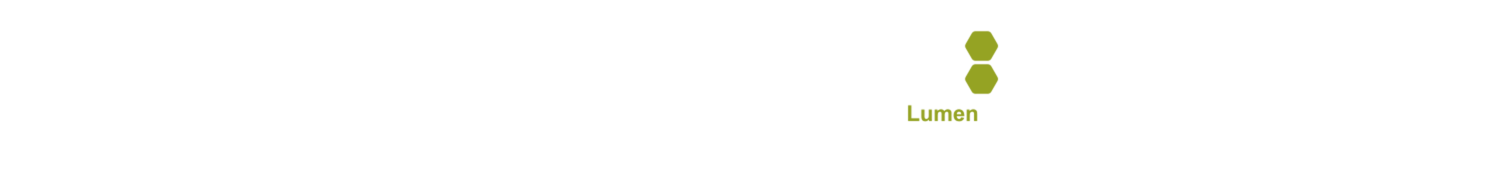

all in one fixture. It also supports a variety of control methods, making it a cutting-edge solution for professional
production. This groundbreaking innovation highlights Nanlux's ongoing commitment and advancements in LED lighting and
marks a milestone in the transition of motion picture lighting to the LED era.

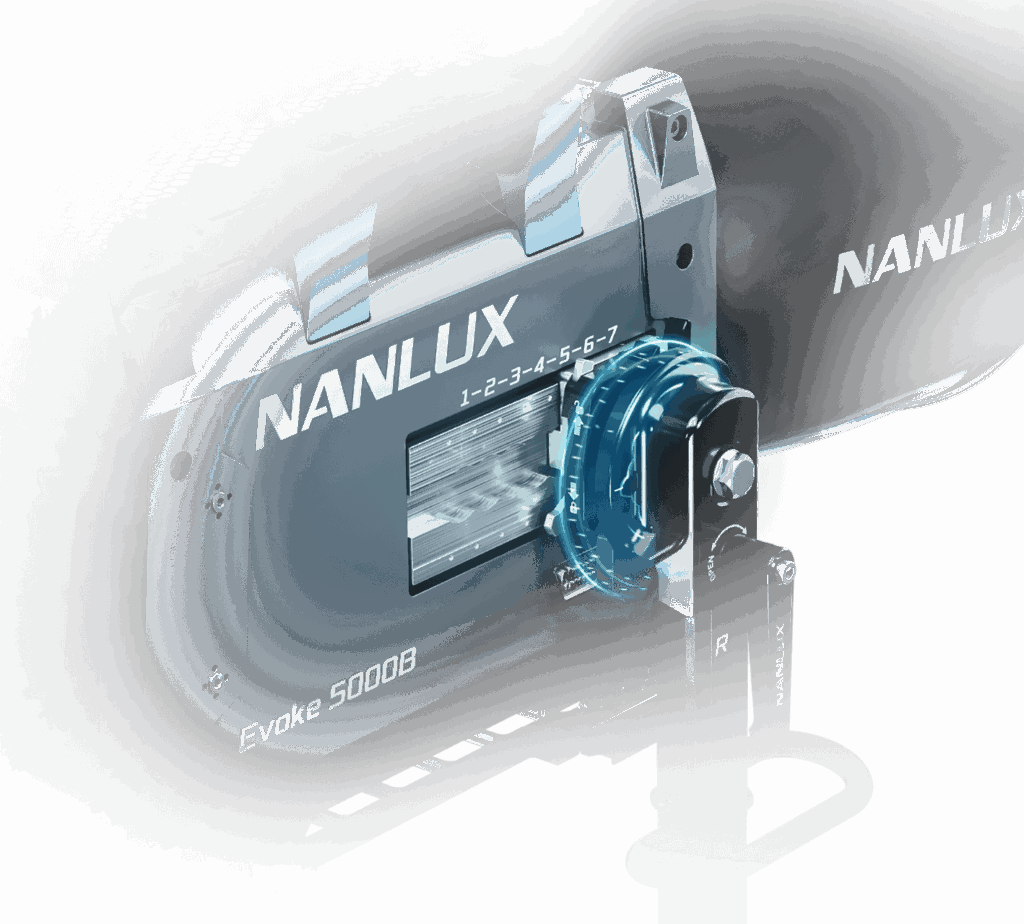

The yoke of Evoke 5000B is designed with disc brake, providing more grip strength that prevents the fixture from accidentally tilting once the angle has been fixed. This ensures precise positioning and on-set safety. There is an angle display on the yoke, ideal for aligning the angles when multiple fixtures are working as a group.

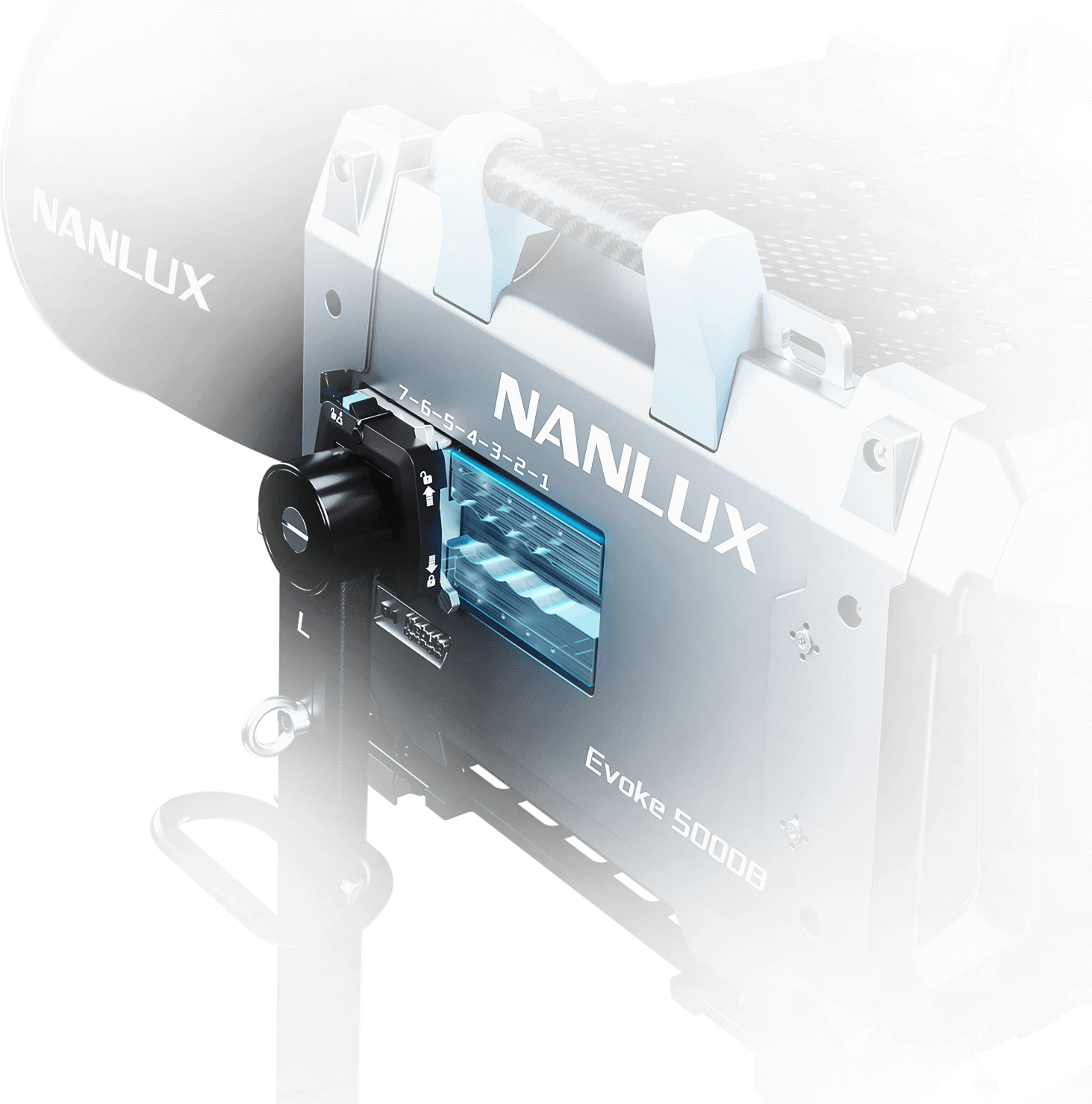

The two sides of the fixture is built with balance adjusting rails, enabling flexible adjustment of the balance position of the head, ensuring that the fixture remains neutral in terms of center of gravity when different accessories mounted on.
This cooling system includes Smart, Full Speed, Low Speed
and Off modes, allowing users to switch between them based
on their needs. The Smart mode automatically adjusts the fan
speed according to the ambient temperature. In this mode,
the noise level is only 44 dB(A), ensuring a silent recording
environment.

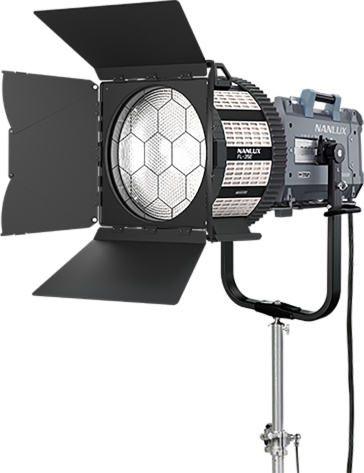

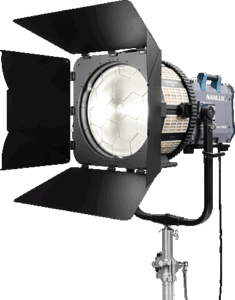

The newly introduced motorized Fresnel lens features a 45cm lens
with a 16°-50° zoom range. At 16°, it gives the Evoke 5000B an

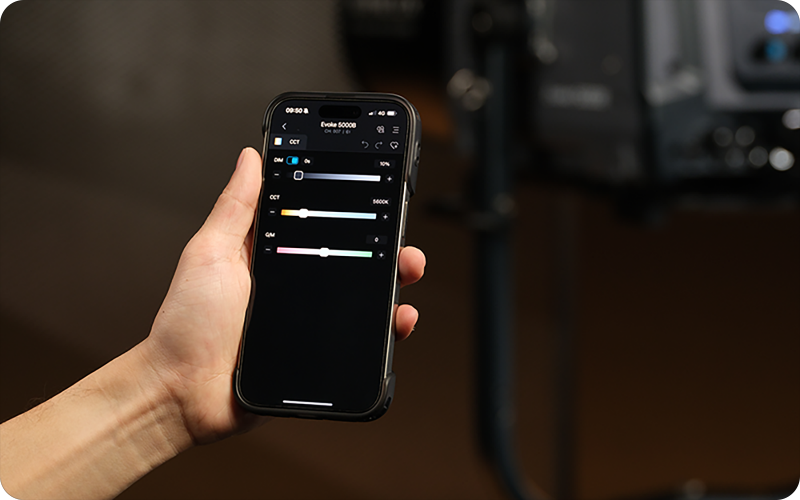

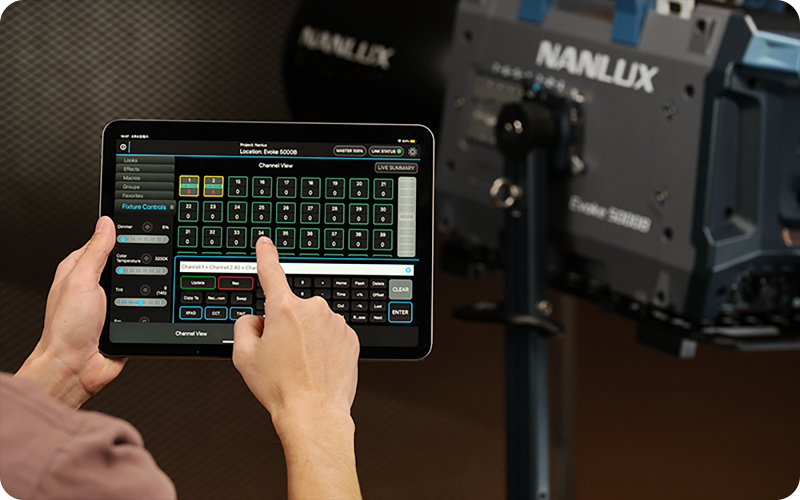

illuminance of 55,600 lux (@5m, 5600K), providing smaller lighting area and a less hard appearance. The zoom range of the FL-45E can be adjusted using the button on the Fresnel lens itself, controlled on the fixture, via wired control (wired controller, DMX, Ethernet), or through wireless control (Nanlink App 2.0, LumenRadio CRMX). The built-in fans provide operational stability and reliability in high temperature environments.
*the fixture’s output will be automatically limited
*the fixture’s output will be automatically limited

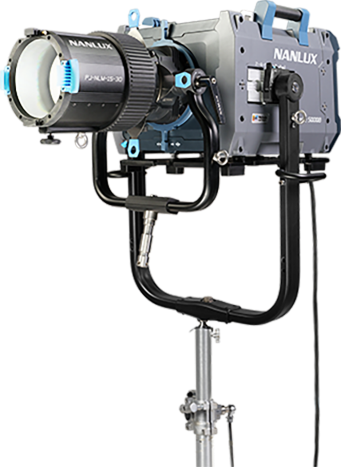

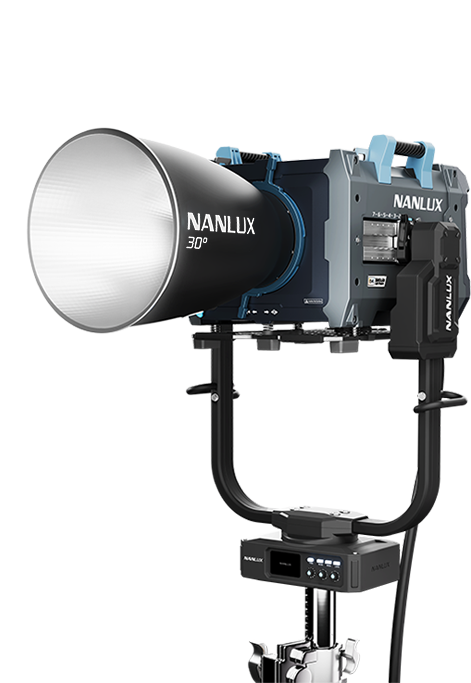

The motorized yoke that specifically designed for the Evoke 5000B has ability to adjust the angle electronically, enabling 540° horizontal rotation and 270° vertical flip. This makes it simple to position and adjust when the fixture is rigged high, significantly improving on-site setup efficiency. The motorized yoke contains a panel at the bottom for controlling both the fixture and the yoke simultaneously. It can also be controlled via the button, or by the wired controller, DMX/RDM, Ethernet.

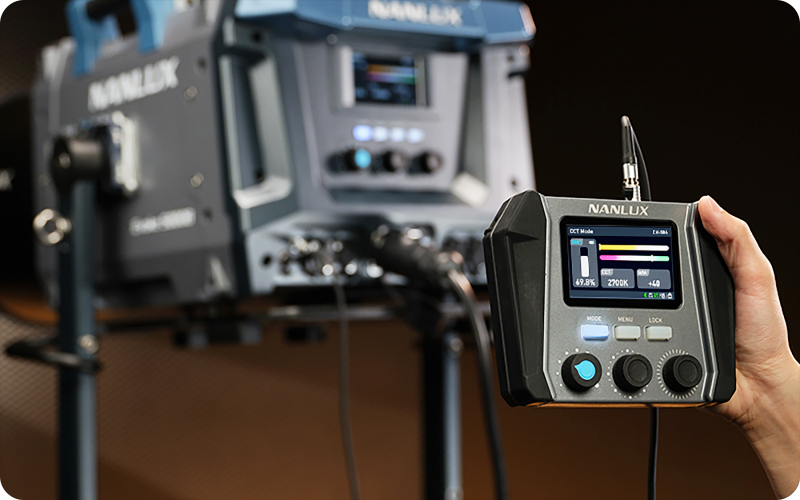

The new wired controller is designed with a 3.2-inch display screen, three buttons, and three knobs. The interface replicates the control layout of the Evoke 5000B, so users can quickly adapt when switching between on-board control and wired controllers. The controller comes with an 8m connection cable. An IP66-rated housing ensures it can still operate even in severe weather. There is a magnetic module on the rear of the controller, allowing it to adhere to metal surfaces or attach to a magnetic base that can be installed on the fixture for convenience.
100V-125V countries/regions:
Evoke 5000B × 1
Yoke × 1
AC Cable 7.5m × 1
AC Aviation Plug × 1

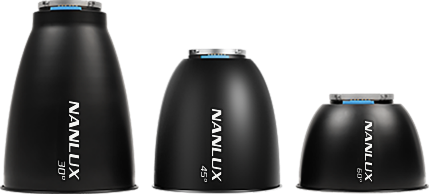

Reflector × 1
USB Flash Drive × 1
WC-EXT Wired Controller × 1
(Connection Cable 8m × 1,
AS-MB-1 Magnetic Base × 1,
Carrying Bag × 1)
User Manual × 2 (Evoke 5000B+WC-EXT)
