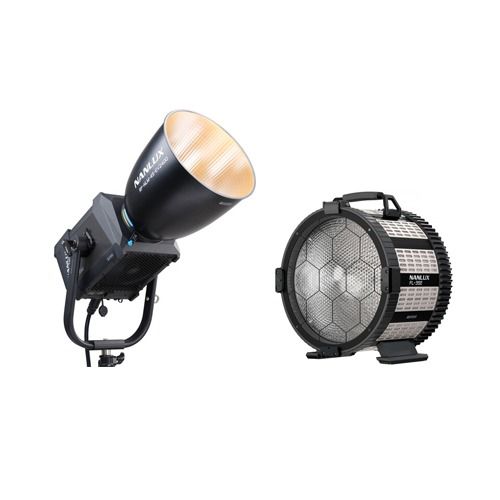

NANLUX FL35E MOTORIZED FRESNEL
Nanlux FL35E Motorized Fresnel for use with the Nanlux 2400B. The Motorized Fresnel Lens FL-35E is a cutting-edge NL mount optic with remote control and a zoom range from 15° to 46°. It seamlessly integrates with the Evoke 2400B, delivering a remarkable illumination of 75700lux@3m, 5600K, 15°.
Nanlux FL35E Motorized Fresnel for use with the Nanlux 2400B.
The Motorized Fresnel Lens FL-35E is a cutting-edge NL mount optic with remote control and a zoom range from 15° to 46°. It seamlessly integrates with the Evoke 2400B, delivering a remarkable illumination of 75700lux@3m, 5600K, 15°.
In addition to superior optical performance and precise beam angle control, the FL-35E features a precise motorized adjustment function powered via the electronic contacts in Nanlux’s NL mount of the Evoke 2400B. The zoom range is controllable through multiple methods, providing a more intelligent and efficient workflow for productions.
The Nanlux FL35E can be controlled either by the button on the lens itself, or by the lamp head, NANLINK APP, wired controller, DMX console, etc. These flexible control method options give gaffers and lighting technicians the flexibility to choose the most convenient control method based on requirements.
Weatherproof Performance – Building upon the outstanding protection attributes of the Evoke 2400B, the FL-35E boasts an IP55 rating, ensuring strong dust and water resistance. This feature makes the Evoke 2400B and FL-35E combination suitable for use in harsh environments, providing consistent and stable lighting for exterior shoots lasting all day or in environmentally challenging production scenes.
The introduction of the FL-35E Motorized Fresnel Lens will provide more flexibility and convenience for professional productions. Whether in film, television or commercial shooting, the FL-35E provides accurate, high-quality light control to help production teams achieve superior results. Learn more here.
Technical Data
| Model | FL-35E |
|---|---|
| Beam Angle | 15° ~ 46° |
| Compatible Product or Mount |
NL mount lighting fixtures that with electronic contacts |
| Product Size | FL-35E: 430.38 × 490.15 × 330.3mm / 16.94 × 19.30 × 13.00″ Barndoor: 525.61 × 399.21 × 39.15mm / 20.69 × 15.72 × 1.54″ Trolley Case: 600 × 400 × 520mm / 23.62 × 15.75 × 20.47″ |
| Product Weight | FL-35E: 10kg / 22.05lb Barndoor: 2.3kg / 5.07lb Trolley Case: 6kg / 13.23lb |
| IP Rating | IP55 |
| Certification | CE、UKCA、RoHs、KUKAS |
| Includes | FL-35E × 1 Barndoor × 1 Center of Gravity Adjuster for Evoke 2400B (left) x 1 Center of Gravity Adjuster for Evoke 2400B (right) x 1 M4*14 Countersunk Cross Screw x 10 User Manual × 2 (FL-35E+AS-CGA-EV2400) Trolley Case × 1 |
Illumination (lux / fc)
|
Evoke 2400B + FL-35E ( 15° )
|
||||
|---|---|---|---|---|
| Distance | 3M | 5M | 7M | 9M |
| 5600K | 75700 lux / 7033 fc | 25510 lux / 2370 fc | 13070 lux / 1214 fc | 7709 lux / 716 fc |
|
Evoke 2400B + FL-35E ( 30° )
|
||||
|---|---|---|---|---|
| Distance | 3M | 5M | 7M | 9M |
| 5600K | 32800 lux / 3047 fc | 12380 lux / 1150 fc | 6586 lux / 612 fc | 4151 lux / 386 fc |
|
Evoke 2400B + FL-35E ( 46° )
|
||||
|---|---|---|---|---|
| Distance | 3M | 5M | 7M | 9M |
| 5600K | 17750 lux / 1649 fc | 6745 lux / 627 fc | 3635 lux / 338 fc | 2273 lux / 211 fc |
