NANLUX EVOKE 600C
NANLUX EVOKE 600C - Image 2
NANLUX EVOKE 600C - Image 3
NANLUX EVOKE 600C - Image 4
NANLUX EVOKE 600C - Image 5
NANLUX EVOKE 600C - Image 6

NANLUX EVOKE 600C

Brand:

Powerful, Precise, and Production-Ready

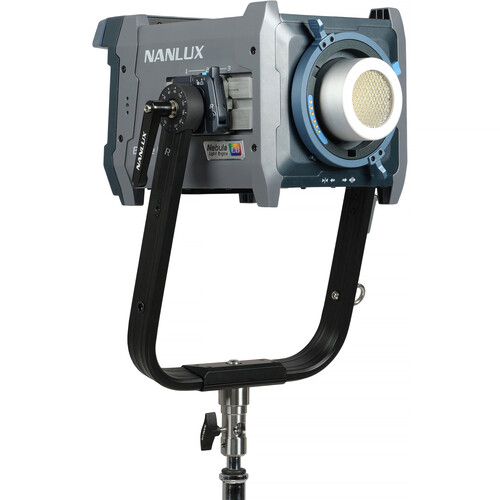

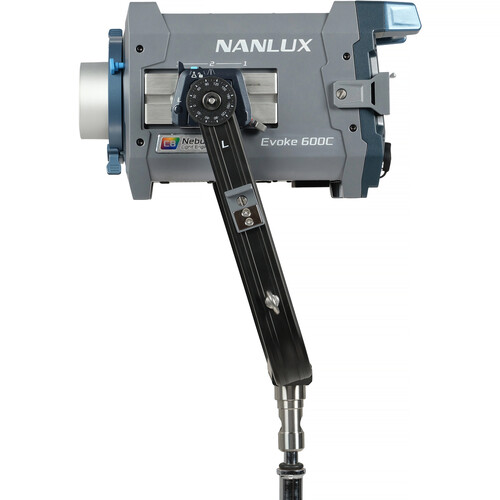

The Nanlux Evoke 600C RGB LED Spot Light Trolley Case Kit delivers a full-color lighting solution designed for demanding professional environments—without the need for an external ballast. Larger and stronger than its smaller 150C counterpart, the 600C measures 14 x 9.7 x 8″, weighs 16 lb, and incorporates a native BE mount for seamless standard Bowens compatibility.

Its exceptionally wide 1000–20,000K CCT range is complemented by ±200 green/magenta adjustment, all driven by the advanced Nebula C8 8-chip light engine—a powerful blend of deep red, red, amber, lime, green, cyan, blue, and indigo LEDs for the richest and most accurate color output.

The fixture supports both AC and DC power and provides comprehensive control options: onboard, DMX/RDM, LumenRadio CRMX, wireless app control, and the included wired controller. A rugged IP66-rated housing ensures reliable all-weather performance, while the included trolley case offers secure transport and storage.

Your Go-To Powerhouse Fixture

Powered by Nebula C8 technology, the Evoke 600C delivers brilliant, deeply saturated color, warm tones, and a wide color gamut. It provides smooth CCT transitions from 1000K to 20,000K, and extremely high output—24,620 lux at 3.3′ (5600K, bare) or 20,820 lux at 9.8′ when paired with its 25° reflector. Despite being larger than the 150C, it remains compact while significantly enhancing performance and color accuracy.

Nebula C8 LED Light Engine

Nanlux engineered the Evoke 600C to deliver exceptional spectral accuracy across the full-color spectrum. The unique 8-chip architecture was fine-tuned through extensive professional testing to achieve deeply accurate color renditionand the widest possible output range, making it ideal for filmmakers, commercial crews, and live production teams who demand true-to-life lighting.

Accurate Color, Precision Dimming & Creative Effects

Light confidently at any intensity. The Evoke 600C offers 0–100% dimming in 0.1% increments for seamless fades and fine adjustments. Its color quality is backed by strong metrics:

  • CRI: 96

  • TLCI: 97

  • SSI: 78 (5600K) / 86 (3200K)

For instant creativity on set, 15 built-in lighting effects include:
CCT Loop, INT Loop, HUE Loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Fireworks, Explosion, and Welding.

Extensive Control Options

Configure your workflow your way—locally, wired, or wirelessly:

  • Onboard controls

  • Nanlink App (Bluetooth)

  • DMX/RDM

  • LumenRadio CRMX

  • Optional WS-RC-C2 wireless remote

Also included: WC-EXT wired controller with magnetic attachment.
The optional AS-EXT-LAN adapter enables ArtNet/sACN over Ethernet, and NFC provides rapid mobile control setup.

Simplified AC/DC Power & Advanced Cooling

Thanks to its all-in-one integrated power design, only one cable is needed for:

  • AC 100–240V

  • DC 48V

A multi-mode fan cooling system protects against overheating, offering five modes:
Smart / Full Speed / Low Speed / Pause / Off

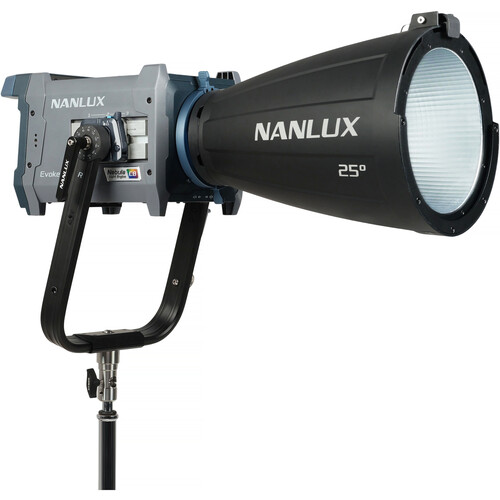

25° BE-Mount Reflector

Included with the fixture, the 25° BE-mount reflector expands shaping options with standard Bowens-compatible modifiers. Electronic contacts interact with select accessories for optimized results. With the optional NL-to-BE adapter, even more light-shaping tools become available.

All-Weather Protection

Engineered for harsh locations, the IP66 rating shields against dust, water, and difficult shooting conditions. Its durable modular construction also enables easier servicing when required.

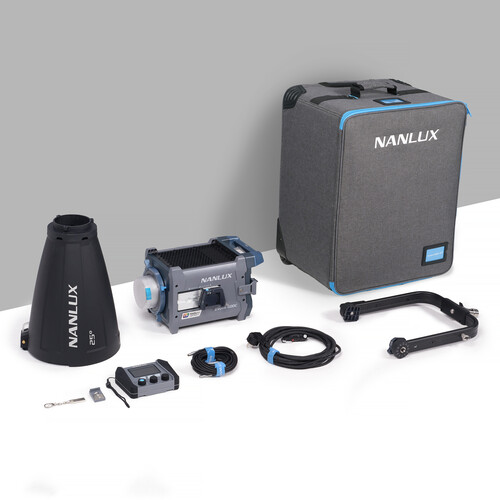

Kit Accessories

Included in the trolley case:

  • 19.6′ AC power cable

  • USB flash drive

  • Wired controller

  • 26.2′ connection cable
