Overview

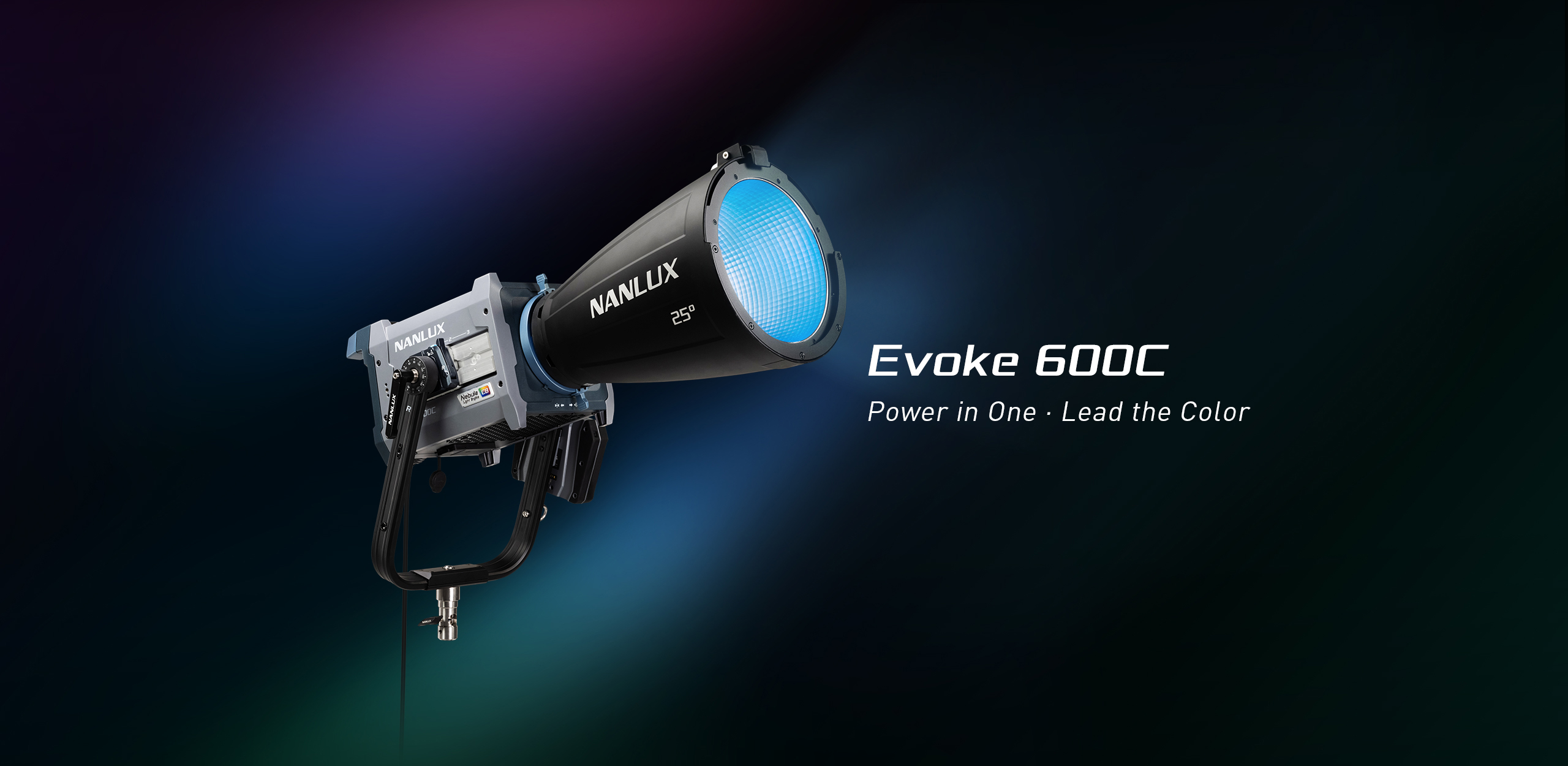

The Nanlux Evoke 600C is a 600-watt LED luminaire engineered for professional video and film production environments. With a broad CCT range of 1000K to 20000K, extremely high colour rendering metrics (CRI 98, TLCI 98, TM-30 Rf 96, TM-30 Rg 100), and IP66 weather resistance, this fixture is designed to deliver premium, flexible lighting under studio or demanding on-set conditions. MPS Film
Whether you’re lighting a controlled interior scene, or taking production outdoors in unpredictable weather, the Evoke 600C offers a combination of power, precision and connectivity that makes it fit for high-end broadcast, film and commercial workflows.

Key Specifications

Here’s a detailed look at the technical data that define what this light can do:

What Makes It Stand Out

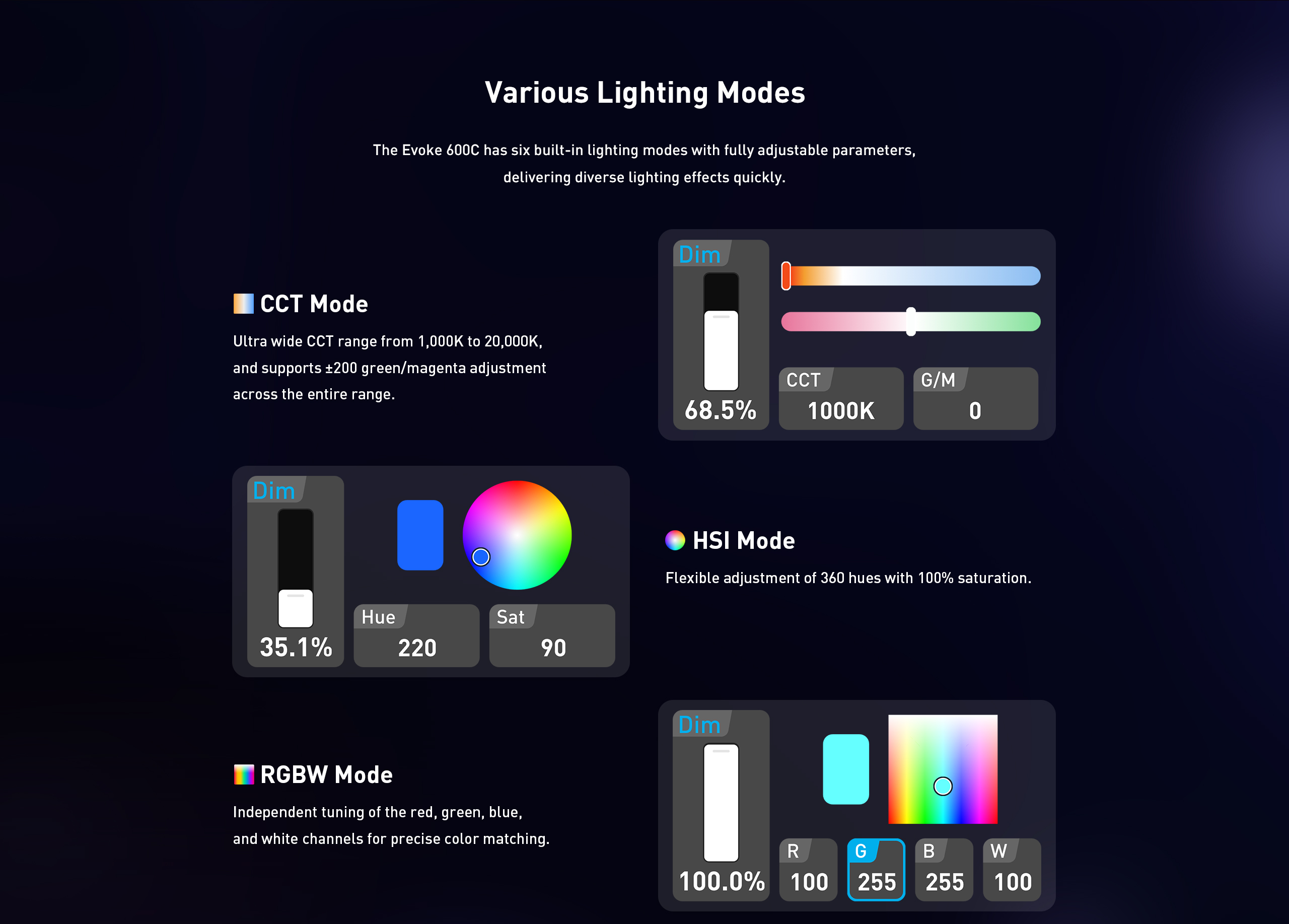

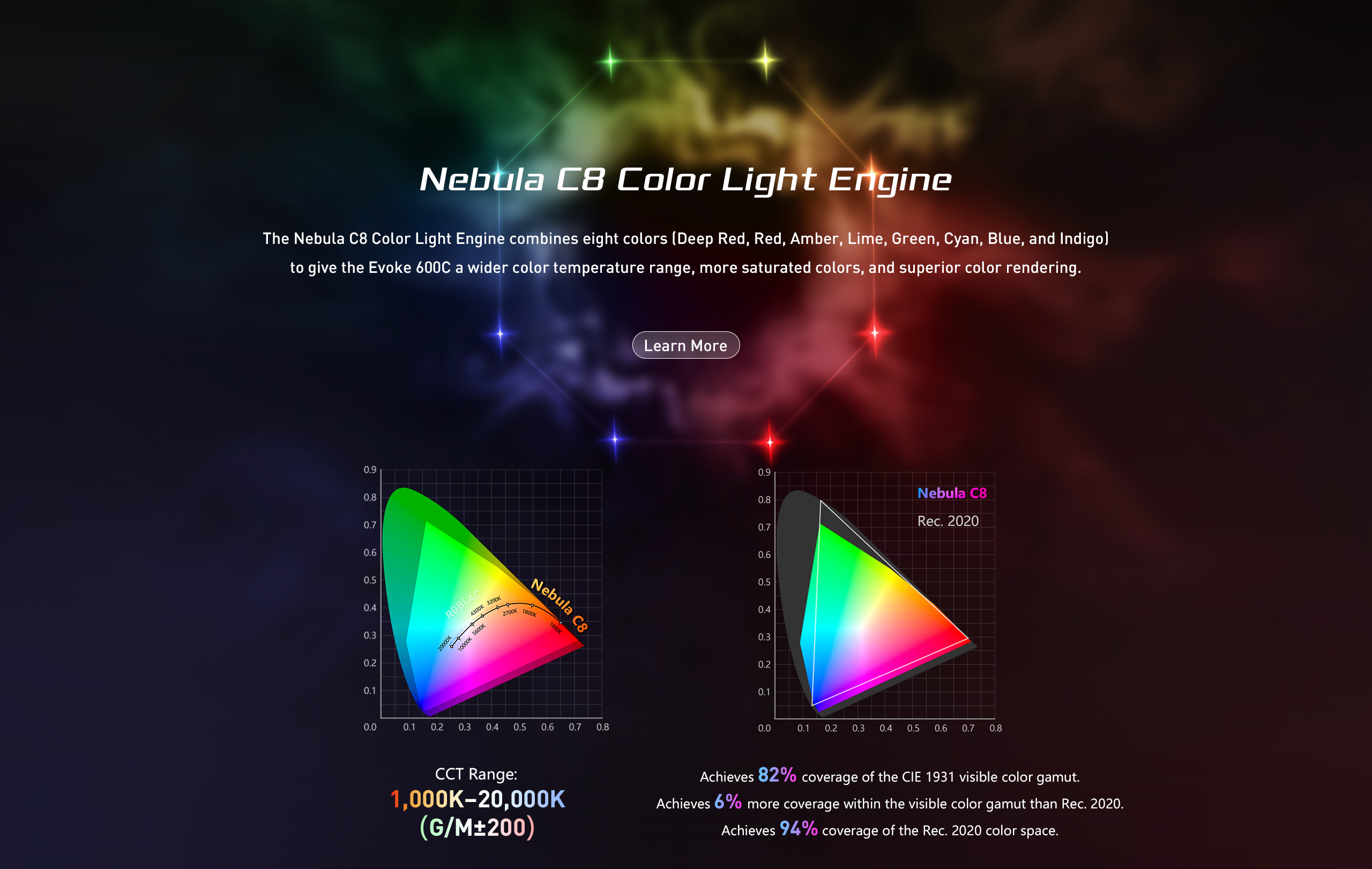

Ultra-Wide Colour Temperature Range

With the ability to dial from 1 000 K (a deep tungsten-amber tone) up to 20 000 K (a rich blue daylight/hyper daylight), the Evoke 600C offers remarkable flexibility. You can mimic nearly any lighting scenario — warm interior tungsten, crisp daylight, or stylised ultra-cool hues.

High-Fidelity Colour

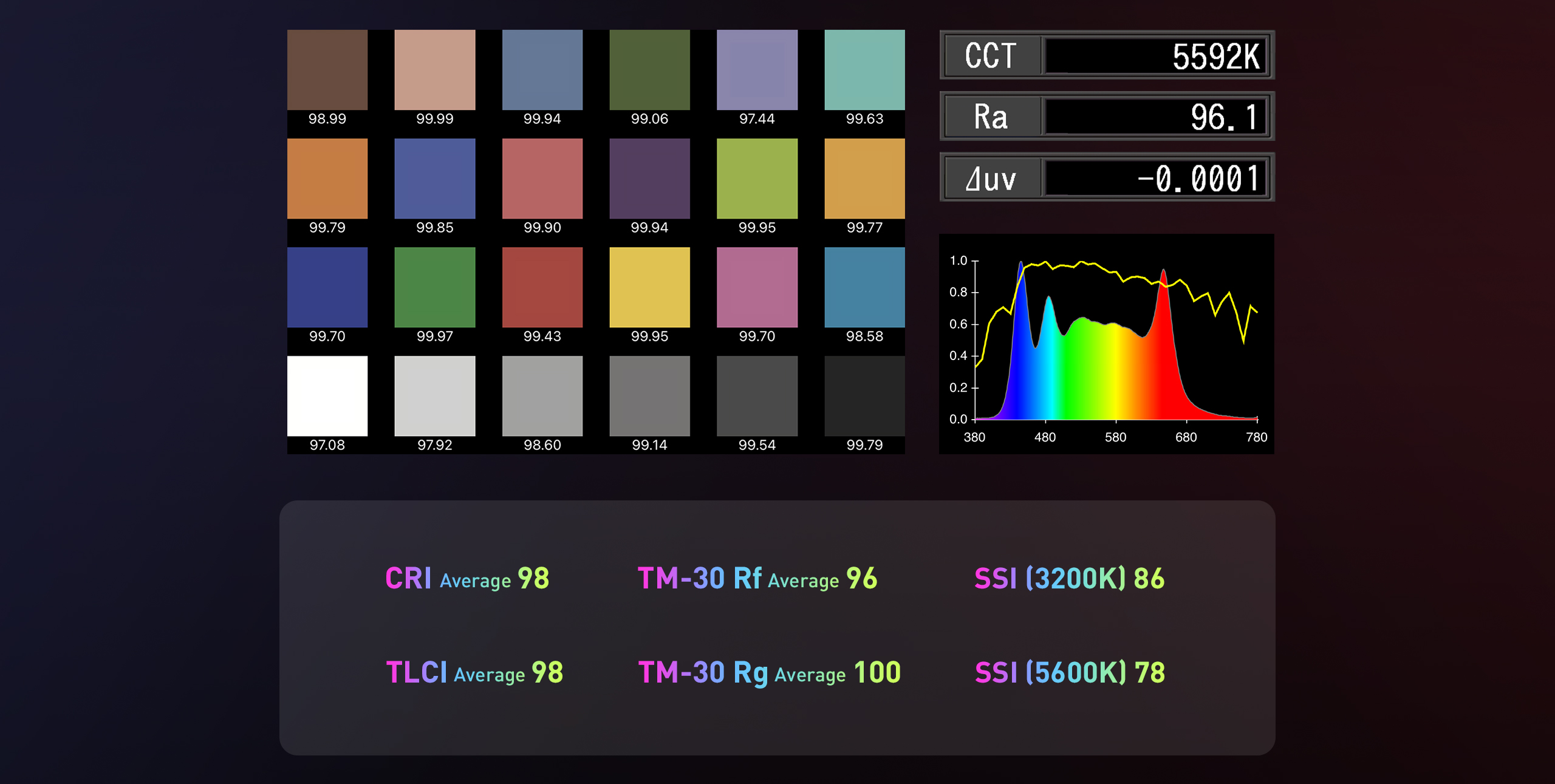

The exceptional CRI, TLCI and TM-30 metrics mean accurate and pleasing skin tones, faithful colour reproduction and compatibility with high-end cameras and workflows. When working in broadcast, cinema or commercial applications, that accuracy matters.

Weather-Resistant Build

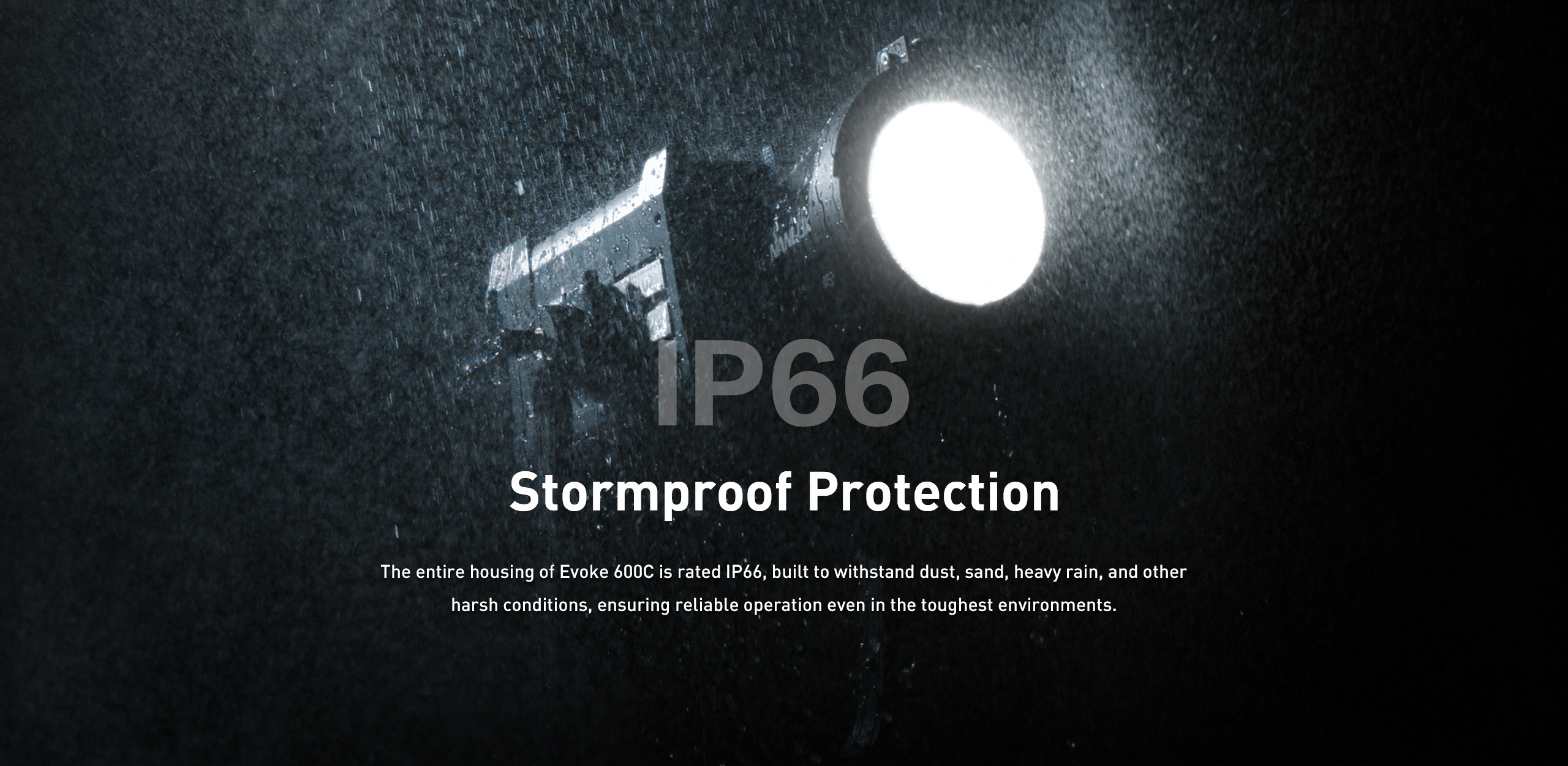

With the IP66 rating, this fixture is well-suited for outdoor shoots, rain-protected sets or environments where dust and moisture may come into play. That adds a layer of robustness for location work.

Full Control Ecosystem

From on-board controls to app-based management (Nanlink), wired controllers, DMX/RDM, CRMX and Art-Net/sACN, this unit integrates smoothly into both simple setups (single light) and complex rigs (multi-light, networked control). The dimming from 0.1% increments gives fine-grained control — especially useful for demanding film lighting tasks.

Strong Light Output

The illumination specs underline the power: at 1m distance (light only, no modifier) the output is ~22,130 lux at 3,200K and ~24,620 lux at 5,600K. Even with modifiers (e.g., 25° reflector) the values remain strong at 3m / 5m distances. MPS Film

Common Questions & Answers

Q: What kind of modifier options work with the Evoke 600C?

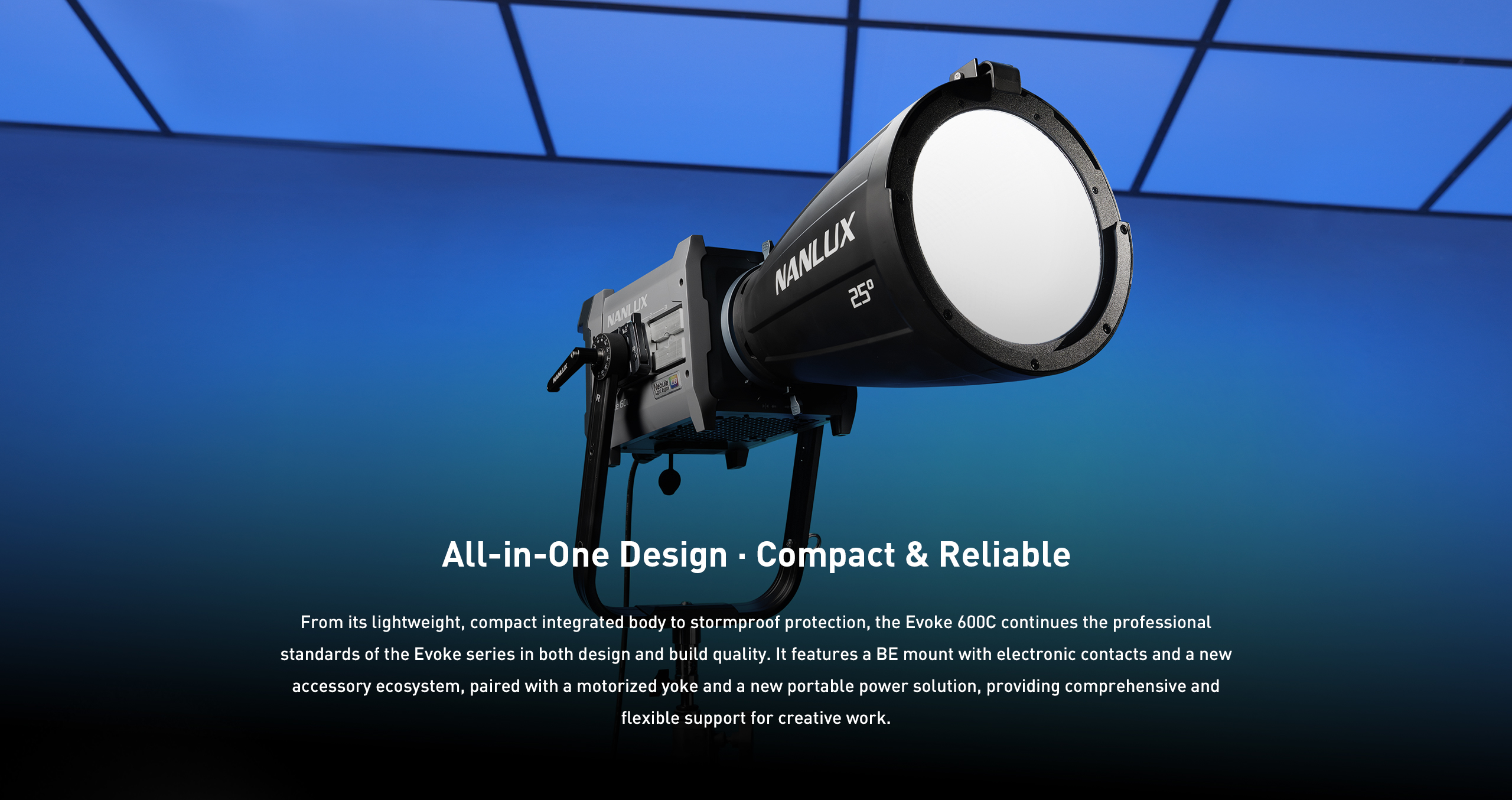

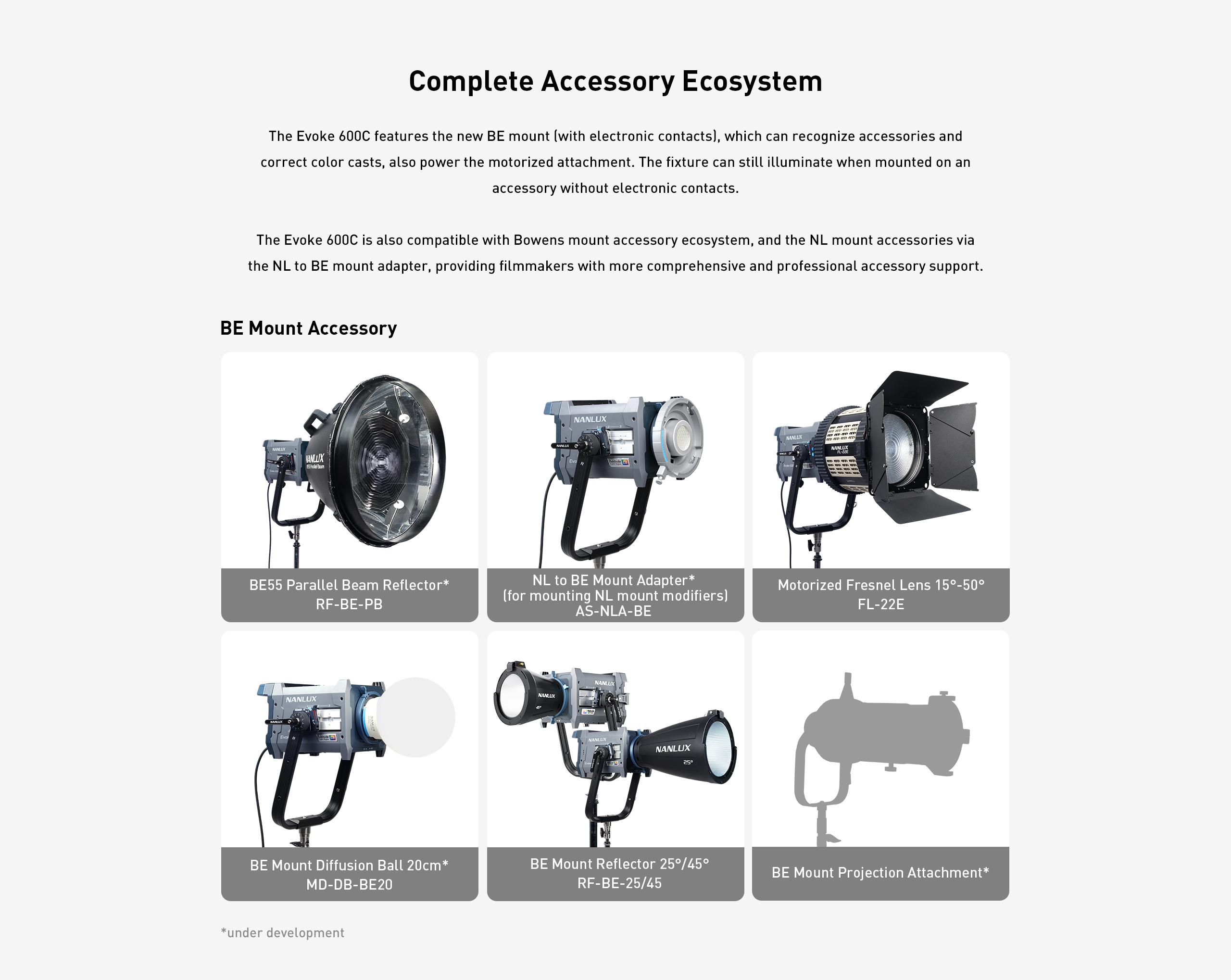

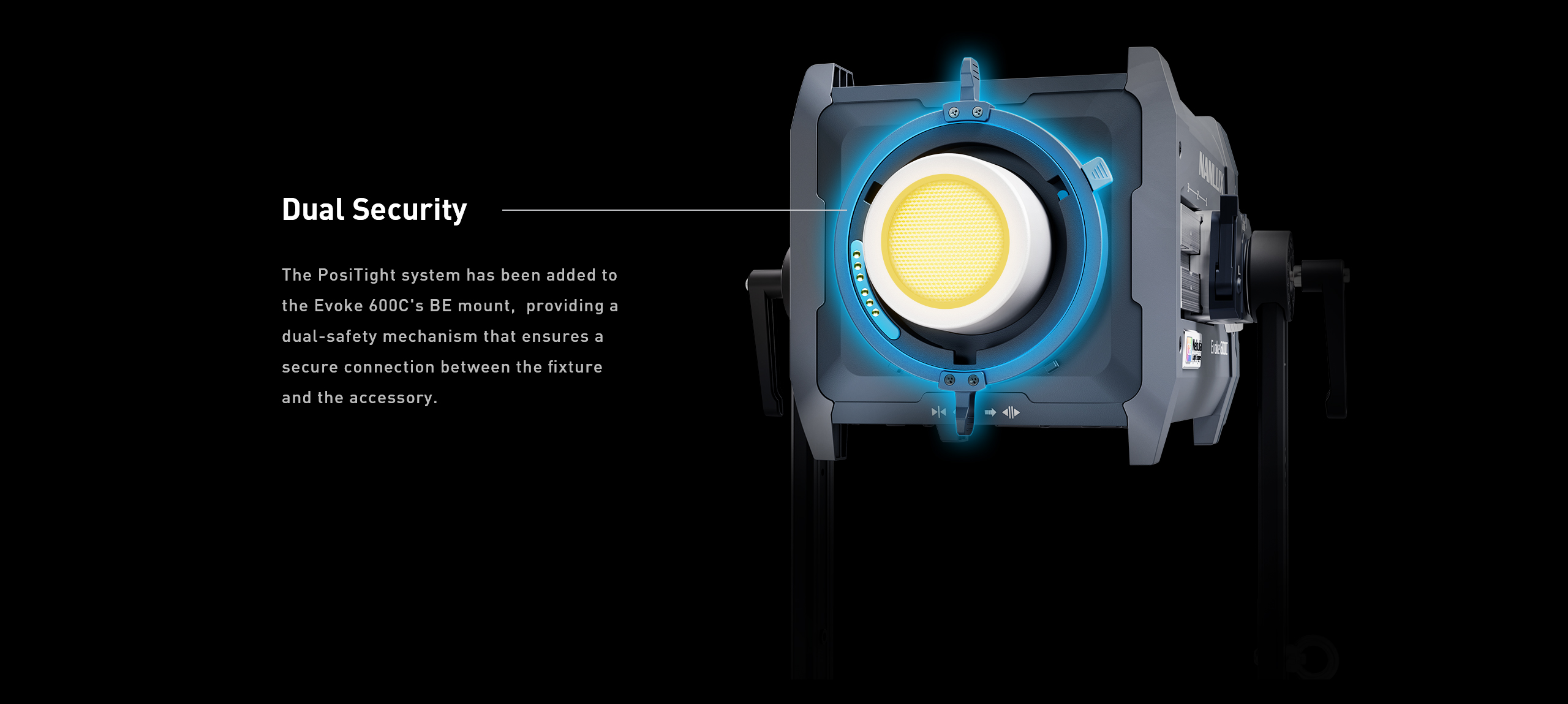

A: You can add standard reflectors (e.g., 25° BE Mount) or other light-shaping tools. The spec sheet indicates a 25° reflector measurement set. MPS Film If you require softer output, you could pair with large softboxes or diffusion panels — just aware that output will drop accordingly.

Q: Can I use this fixture outdoors?
A: Yes — the IP66 rating means it is protected from strong water jets and ingress of dust. That means you can use it in outdoor productions (with appropriate safety rigging) in less-than-ideal weather conditions.
Be mindful of: proper weather-proofing of power sources, ensuring cabling and stands/trussing are secured for outdoor wind and environmental factors.

Q: How does the control interface work?

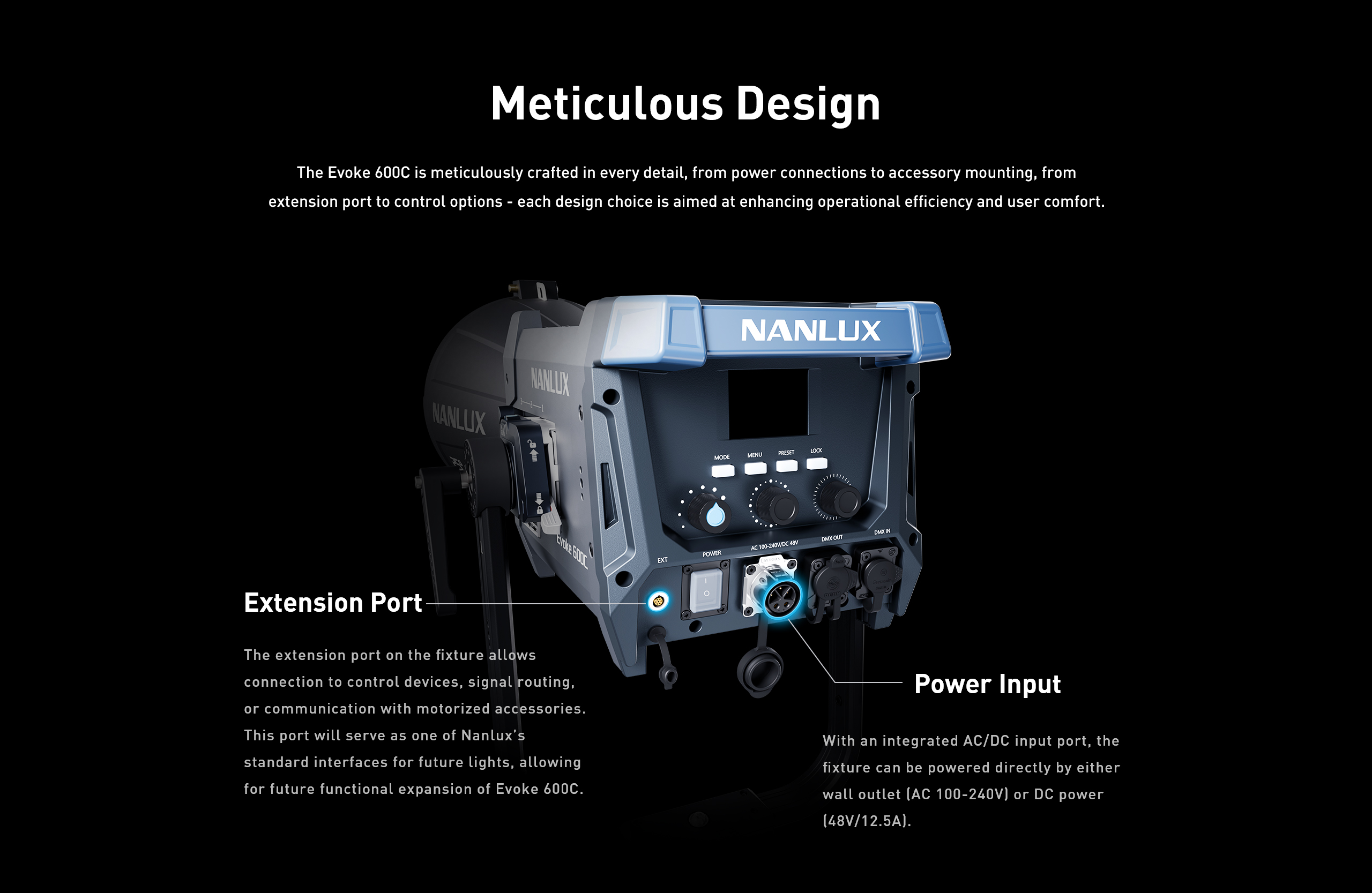

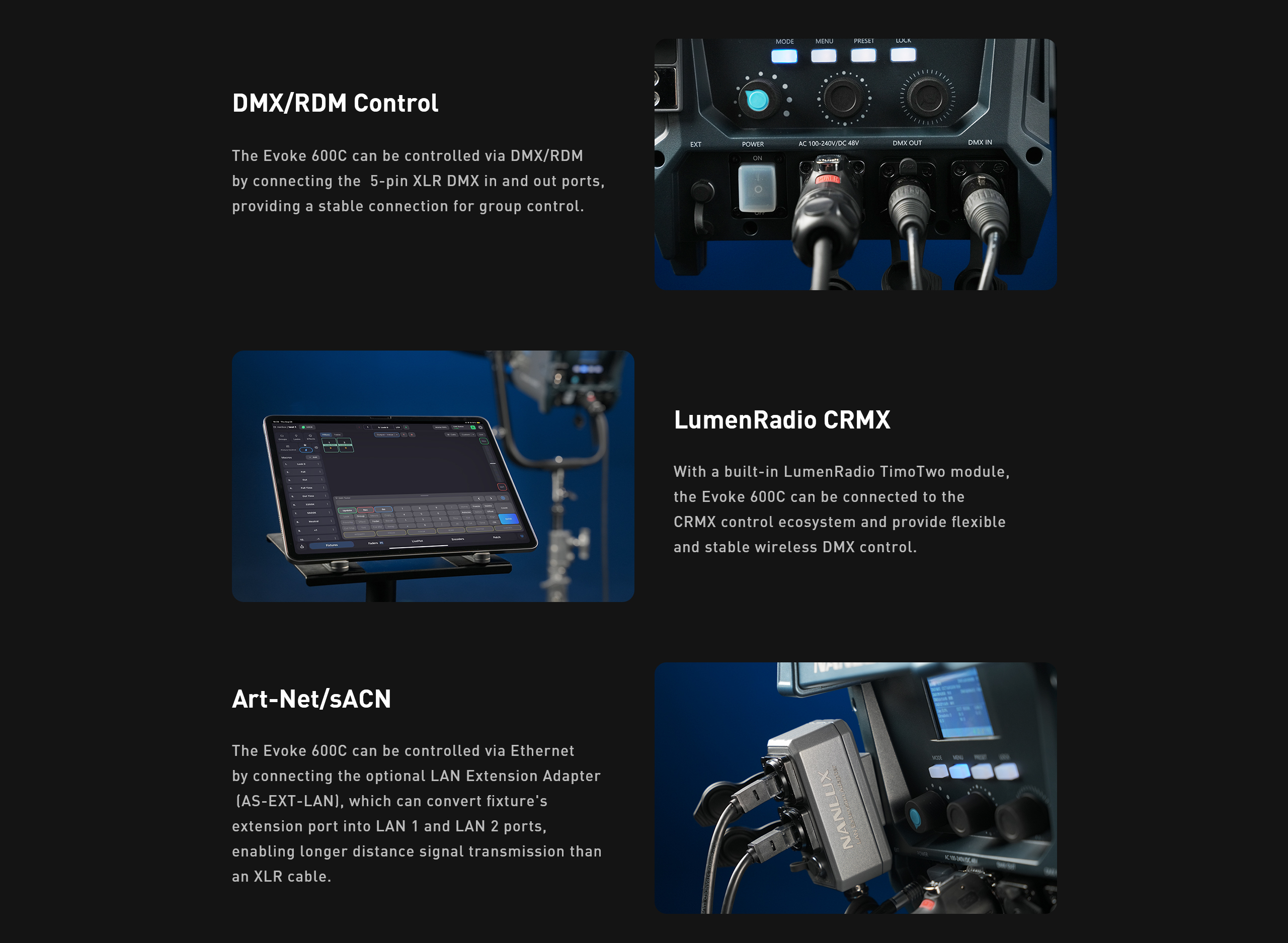

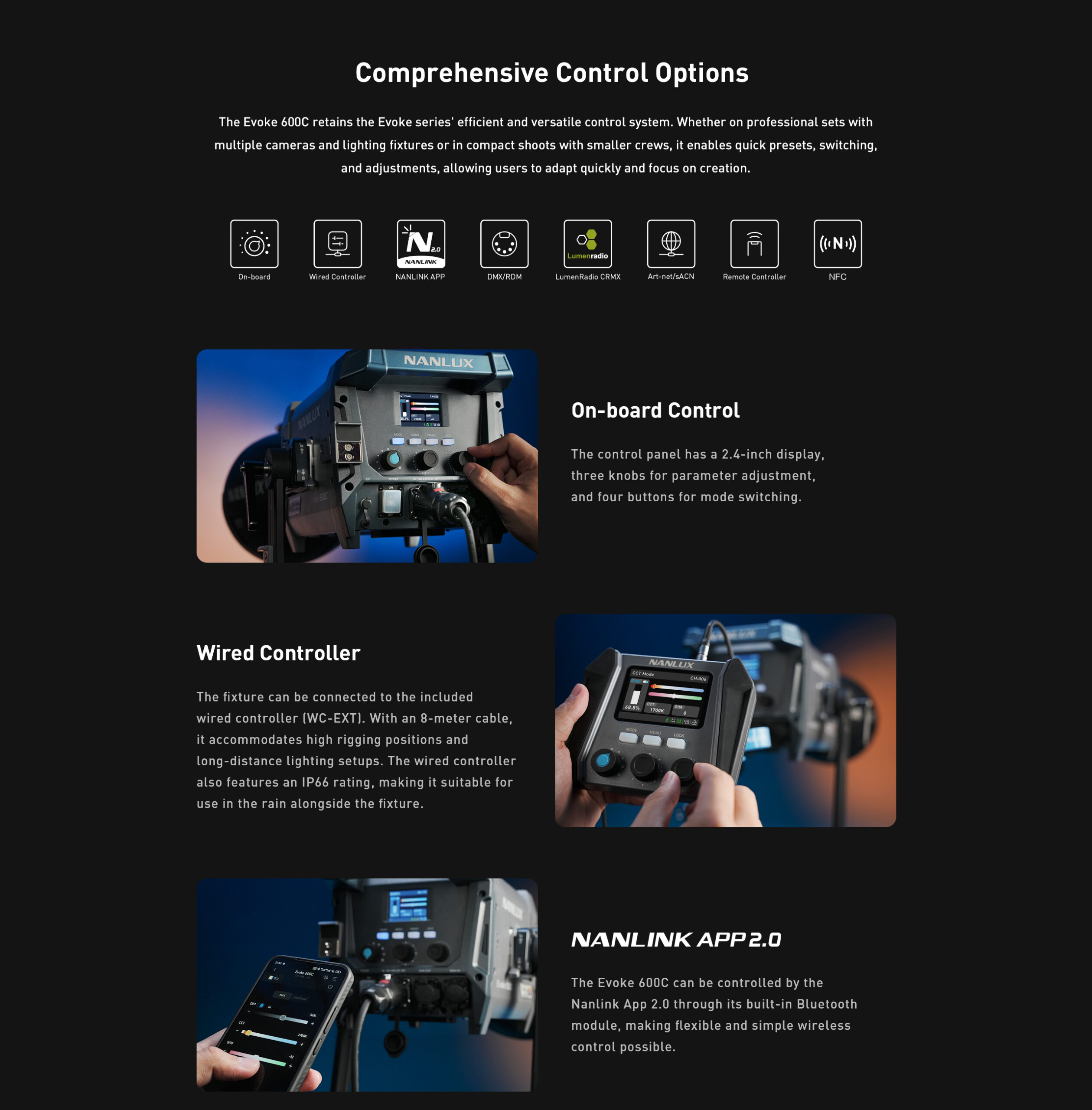

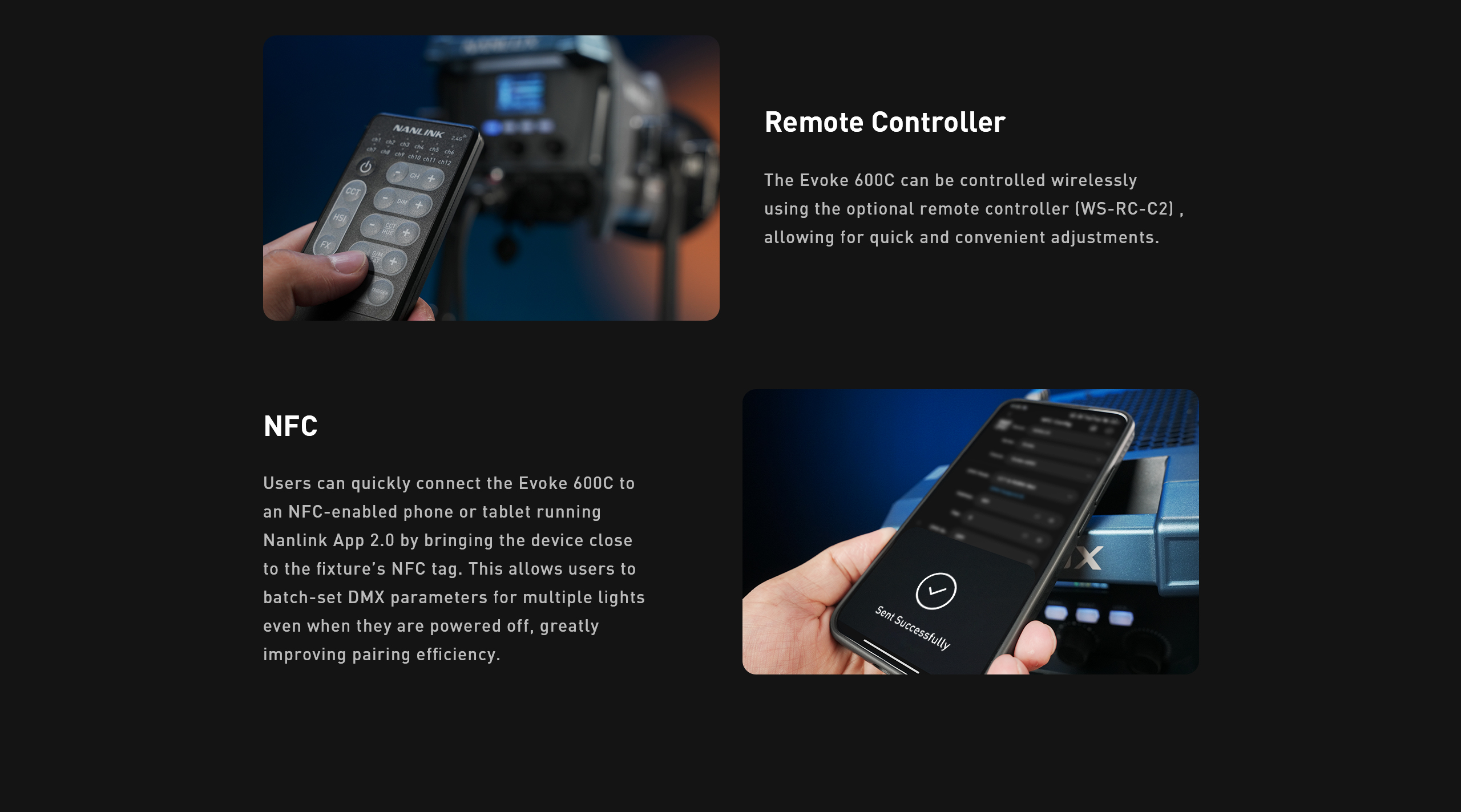

A: The fixture supports multiple control paths: direct pad on the unit, wired controller, Nanlink App (via smartphone/tablet), remote controller, DMX/RDM, LumenRadio CRMX and Art-Net/sACN (with extension adapter). This gives flexible integration from small portable shoots to full-studio networked rigging. MPS Film
If you’re building a large lighting rig, be sure you have the correct extension adapter for CRMX or Art-Net if you plan wireless or networked control.

Q: What’s the dimming behavior like?

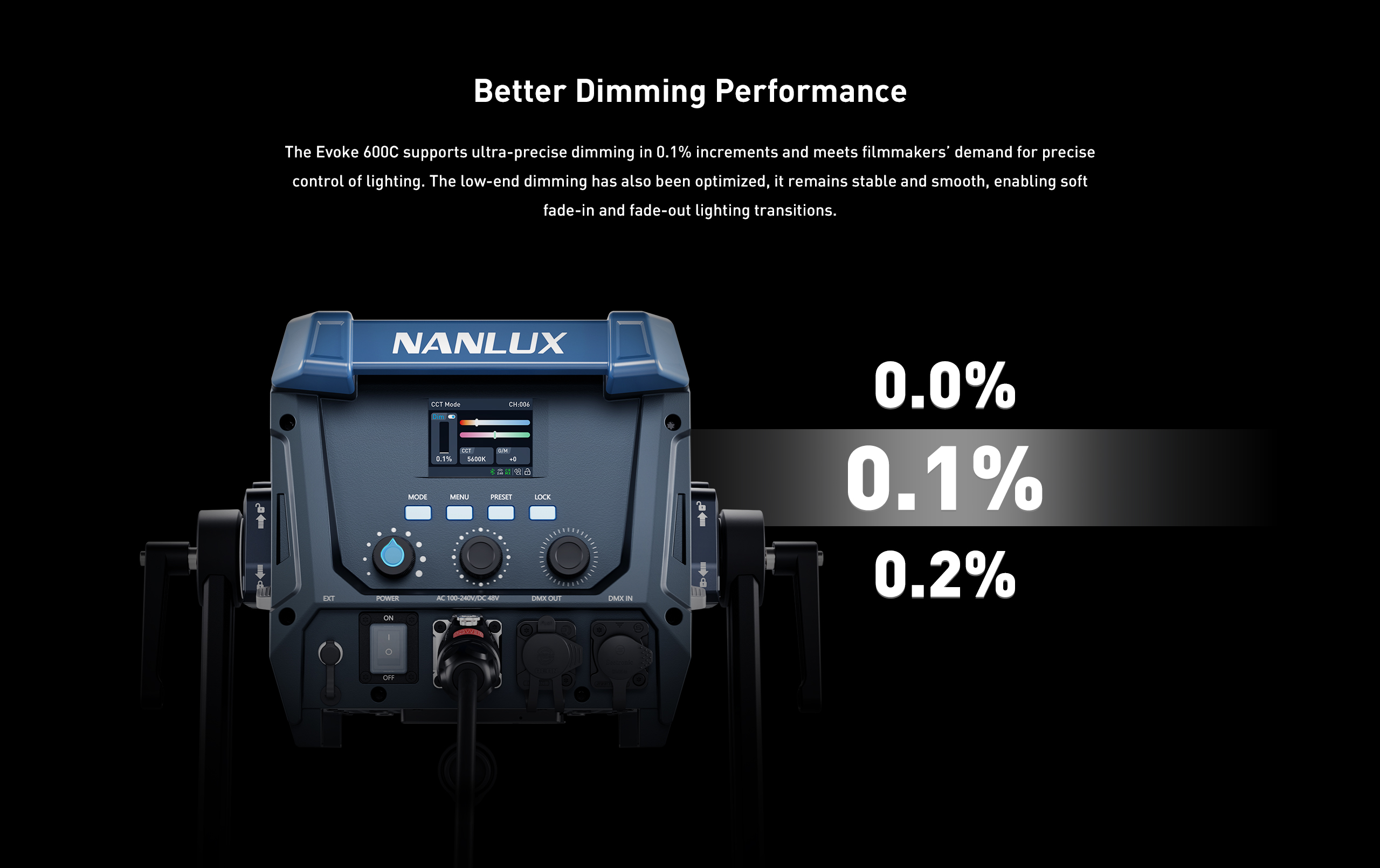

A: Very smooth: 0.0 % to 100.0 % in 0.1% increments, with selectable dimming curves (linear, exponential, logarithm, S-curve, gamma 2.2/2.4/2.6) for creative flexibility. MPS Film That means you can tailor the dimming behaviour to match your camera’s response or specific lighting scenarios (flicker-free, variable ramp, etc.).

Q: How heavy is it and is it easy to rig?

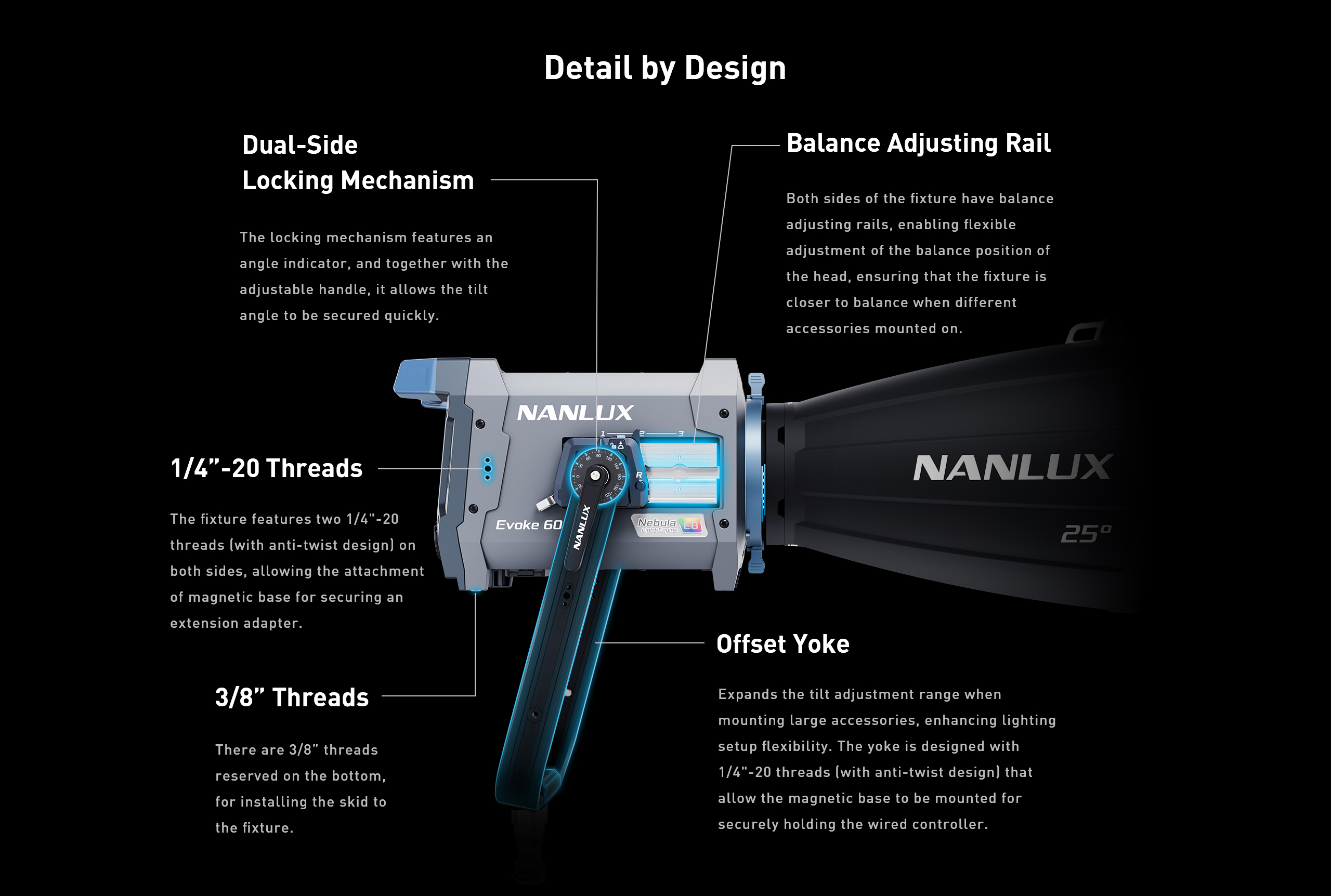

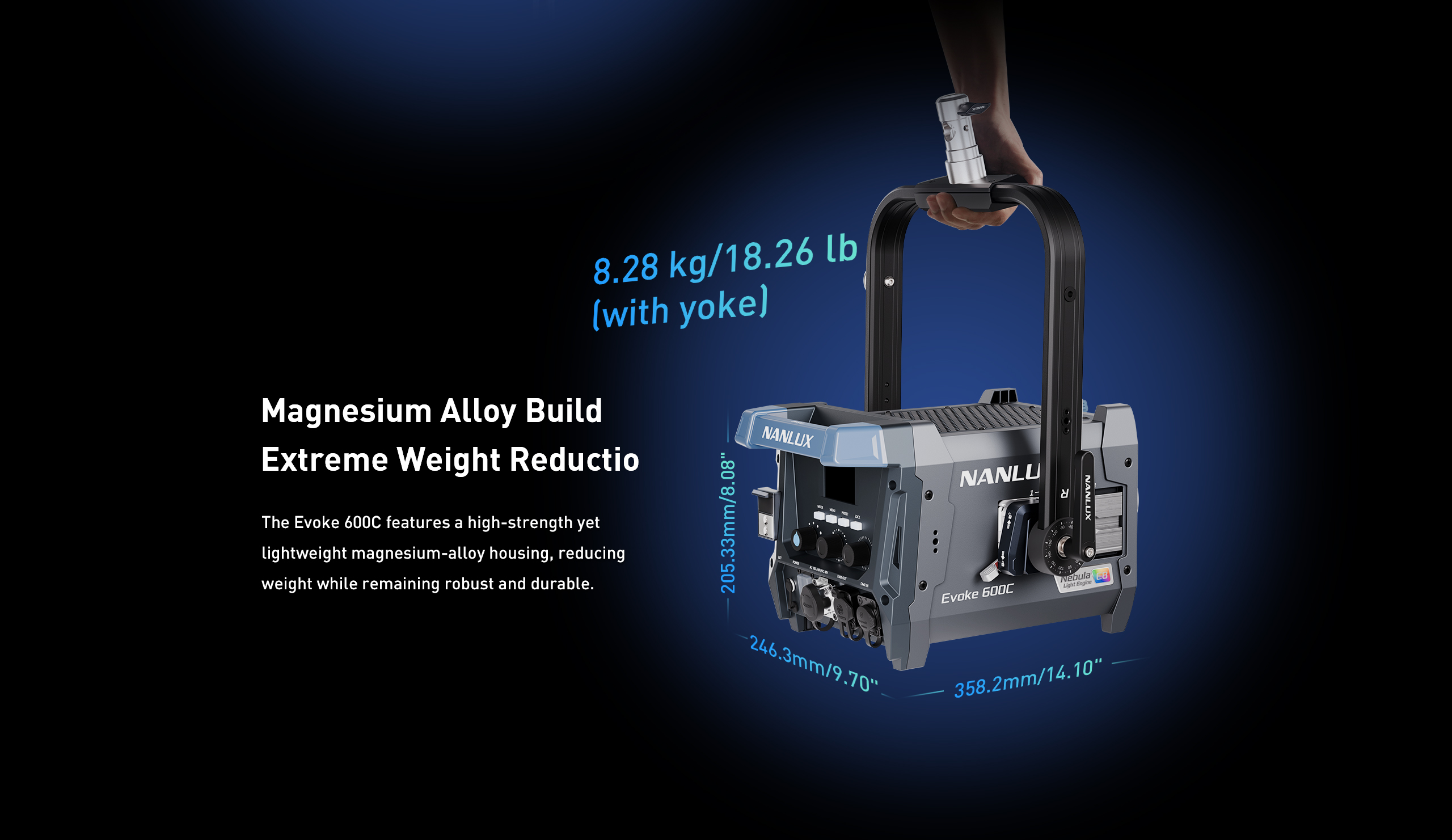

A: The fixture by itself is 7.26 kg (16.01 lb). The yoke adds 1.02 kg (2.25 lb), and if using the 25° reflector add ~1.65 kg. MPS Film
That’s manageable for many studio stands, but if you plan to rig overhead or on truss outdoors you still need to respect weight limits, balance and safety standards (use safety cables, truss rated clamps, etc.).

Q: Does the unit support colour-effects or special lighting modes?

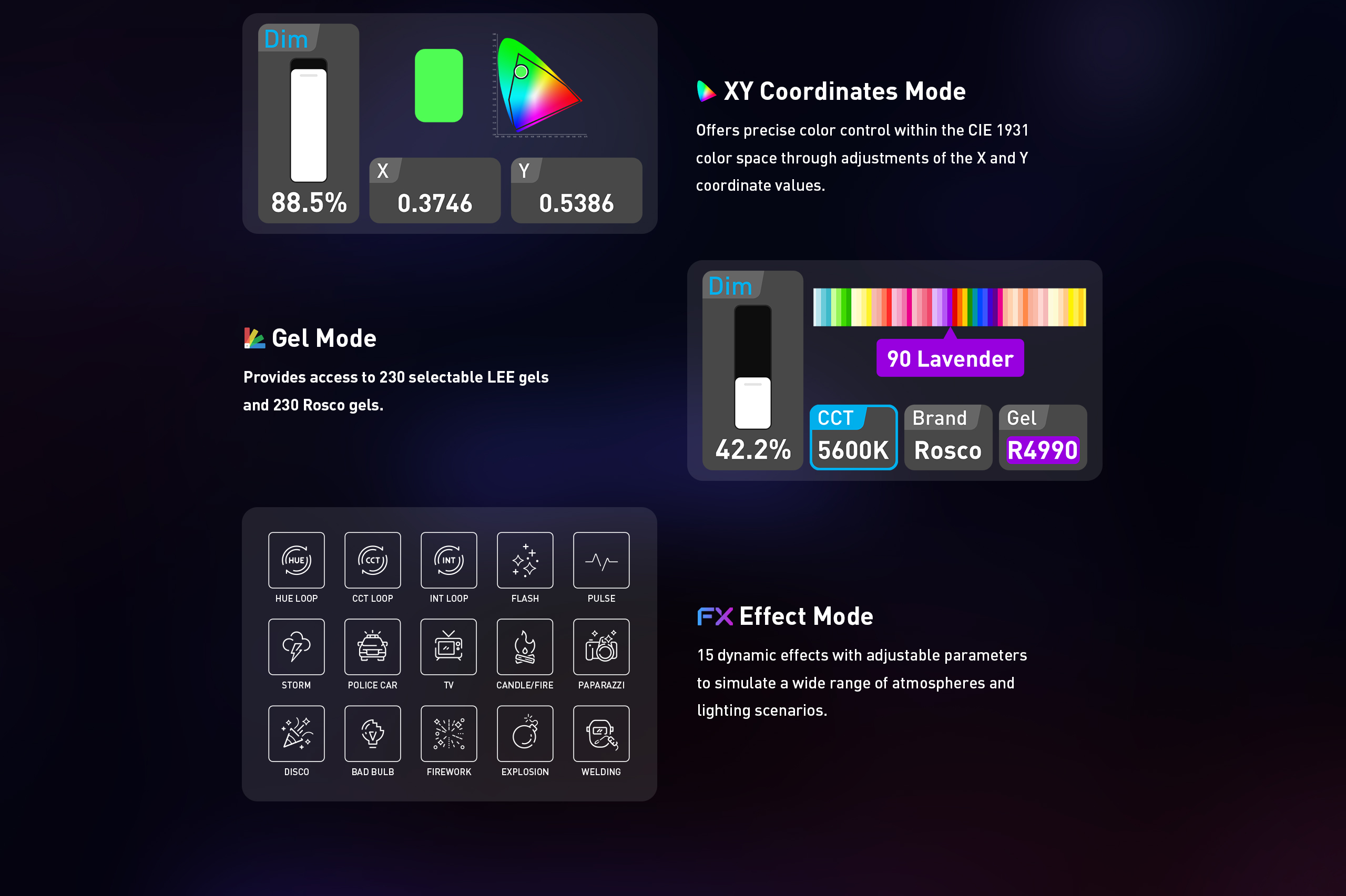

A: Yes — built-in effects include CCT loop, INT loop, HUE loop, Flash, Pulse, Storm, Police Car, TV, Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding. MPS Film
These are useful for practical effects in film shoots without needing separate gear. You can augment with modifiers and gels if required.

Q: What’s the fixture’s output performance at different distances?
A: Example values:

• At 1 m, no modifier: 3 200 K → ~22,130 lux / 2,056 fc; 5 600 K → ~24,620 lux / 2,287 fc. MPS Film

• With 25° reflector at 3 m: 3 200 K → ~17,610 lux / 1,636 fc; 5 600 K → ~20,820 lux / 1,934 fc. MPS Film
  These numbers show it remains bright at practical working distances. Always check for loss when adding modifiers.

Typical Applications & Best Practices

• Commercial / Studio Production: For interviews, short-form content, product shoots — combine high colour fidelity with flexible colour temperature and smooth dimming.

• Film / Broadcast Lighting: When colour accuracy is critical (actors’ skin tones, product realism), the high CRI/TLCI and control features make this an excellent choice.

• Location / Outdoor Work: Thanks to IP66 rating, robust build and high output you can deploy on exterior sets, event coverage, or exterior studios — just ensure you have proper power distribution and rigging.

• Creative Lighting: The built-in effect modes allow for stylised scenes (fire simulation, TV flicker, etc.) which expands the utility beyond purely “key” or “fill” use.

Best Practices:

• When using modifiers (softboxes, reflectors, diffusion grids) verify output drop and adjust distance or power accordingly.

• For outdoor use, secure your light with safety cables, use weather-proof cabling and power, and consider wind load on stand/truss.

• Synchronise control methods (e.g., use Nanlink App to pre-programme scenes) for multi-light setups to ease changeover.

• Use the appropriate dimming curve to match camera log profiles and prevent visible stepping or flicker.

• Keep firmware updated (if applicable) to access the latest features or compatibility improvements (check Nanlux documentation).

Pros & Considerations

Pros:

• Strong, professional-grade output combined with premium colour accuracy.

• Broad CCT range (1 000–20 000K) offers creative flexibility.

• IP66 rating adds outdoor robustness.

• Advanced control ecosystem: wired, wireless, networked.

• Built-in effect modes reduce need for additional gear for certain effects.

Considerations:

• At ~7.3 kg plus accessories, it’s heavier than small portable fixtures — plan for rigging accordingly.

• 600 W rating means it will draw significant power; ensure your infrastructure supports it (cabling, circuit capacity, distribution).

• While the beam angle is 65° native, shaping/modifying light is still required for many film/TV setups (so budget for modifiers).

• If you plan full wireless CRMX or Art-Net control, you’ll need the extension adapter (not necessarily included) — check package contents.

FAQ

Is this fixture compatible with HMI or tungsten lighting setups?
Yes — the broad CCT range and very high colour fidelity make it a strong alternative to HMI or tungsten systems, especially when you want the benefits of LED (cooler operation, low power draw). You’ll need to evaluate output matching and diffusion for your specific scenario.

Can multiple units be synchronised or grouped for a scene?
Absolutely. With wired control, DMX/RDM, LumenRadio CRMX, Art-Net/sACN compatibility, you can build a multi-light network, control groups, program scenes, and manage colour/temperature across all units.

What maintenance is required?
LED engines generally require less maintenance than traditional lamp systems. However, keep the fixture clean (vents, cooling fans if present), ensure firmware/upgrades (if applicable), inspect cabling and mountings, and verify control network integrity periodically.

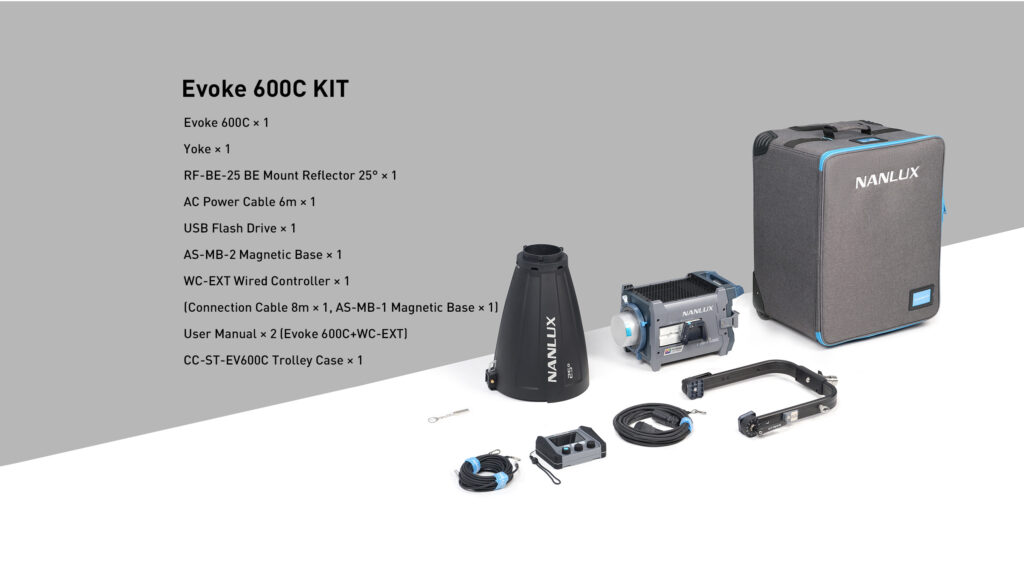

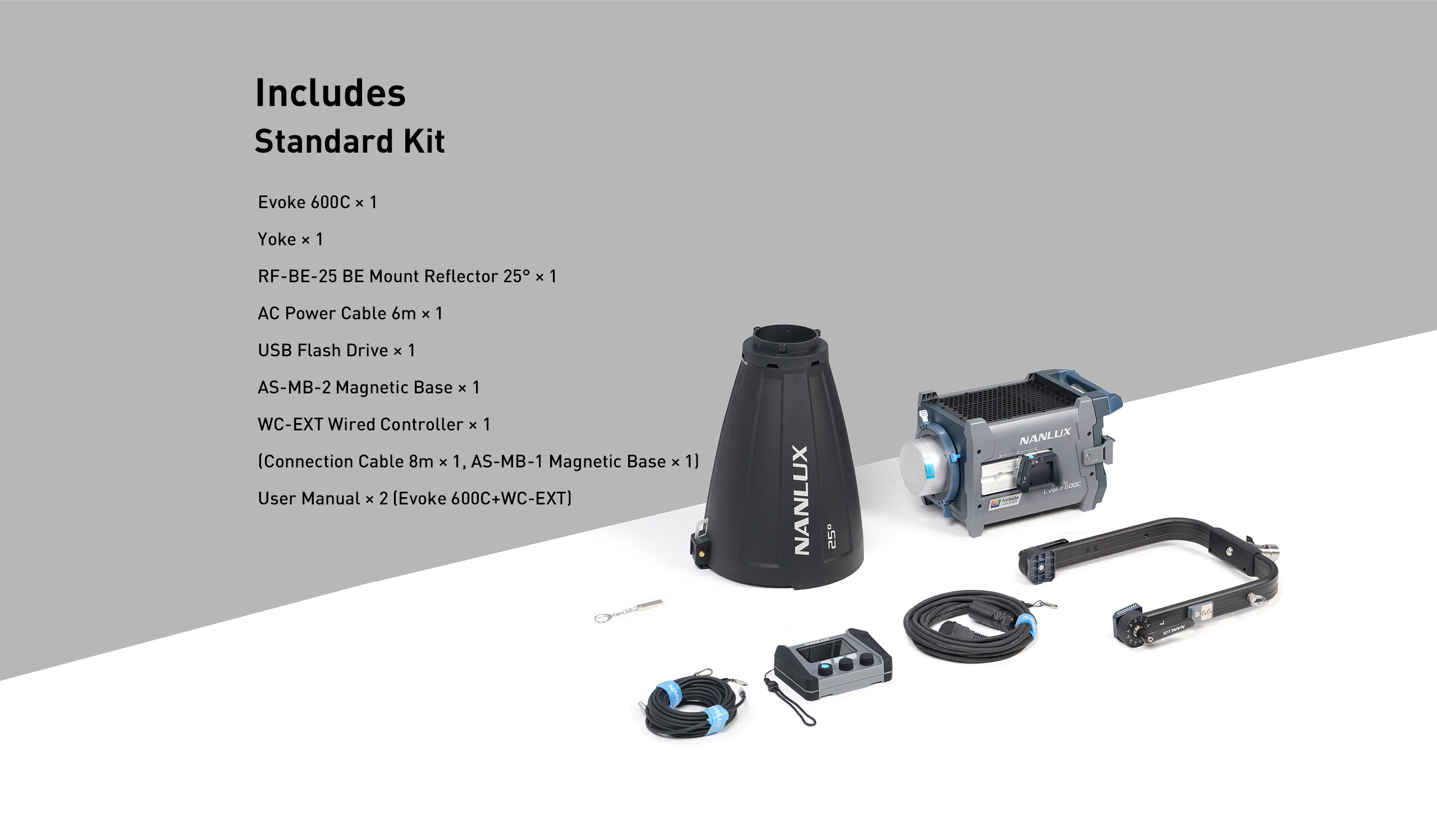

What accessories should I pair with it?

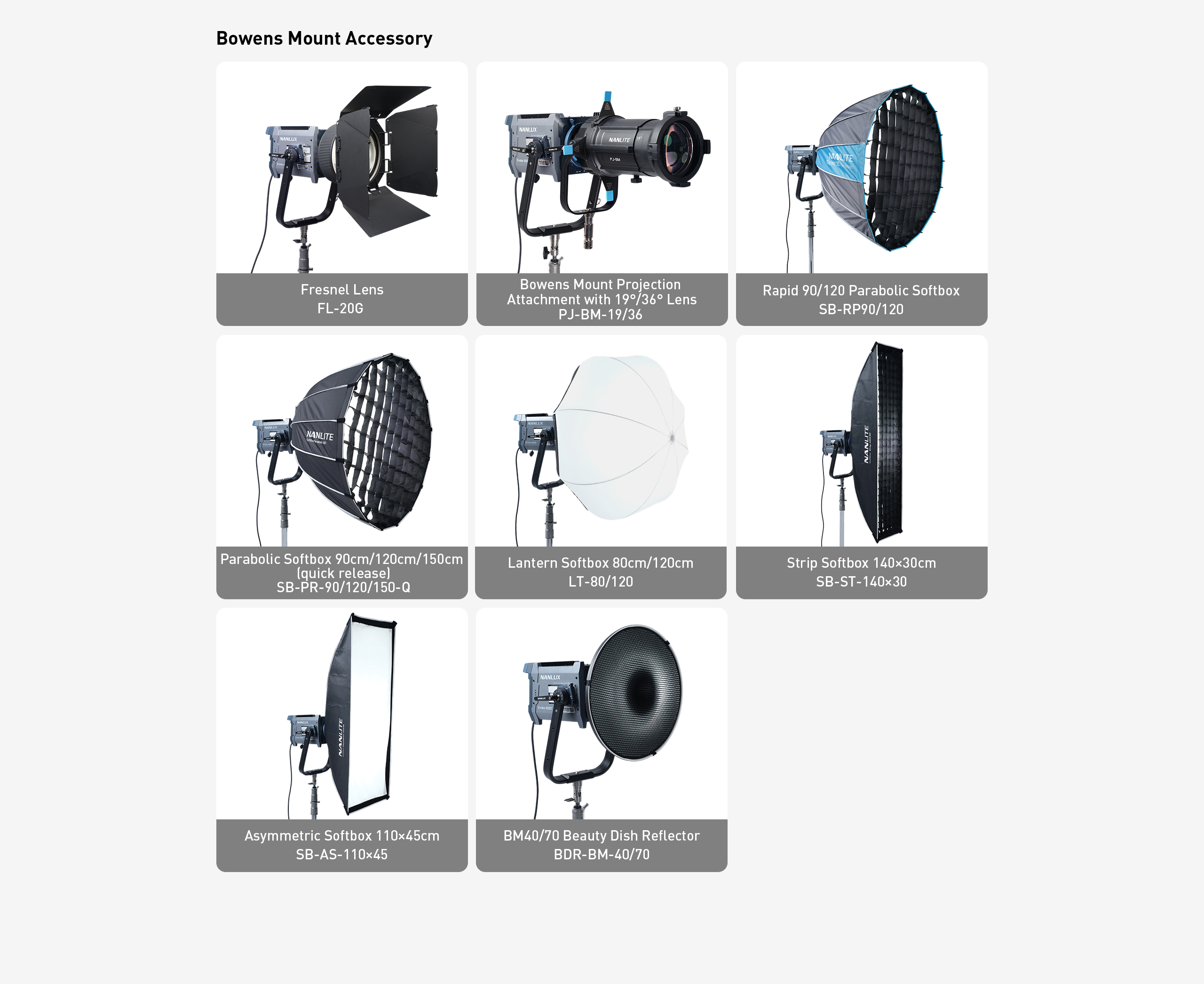

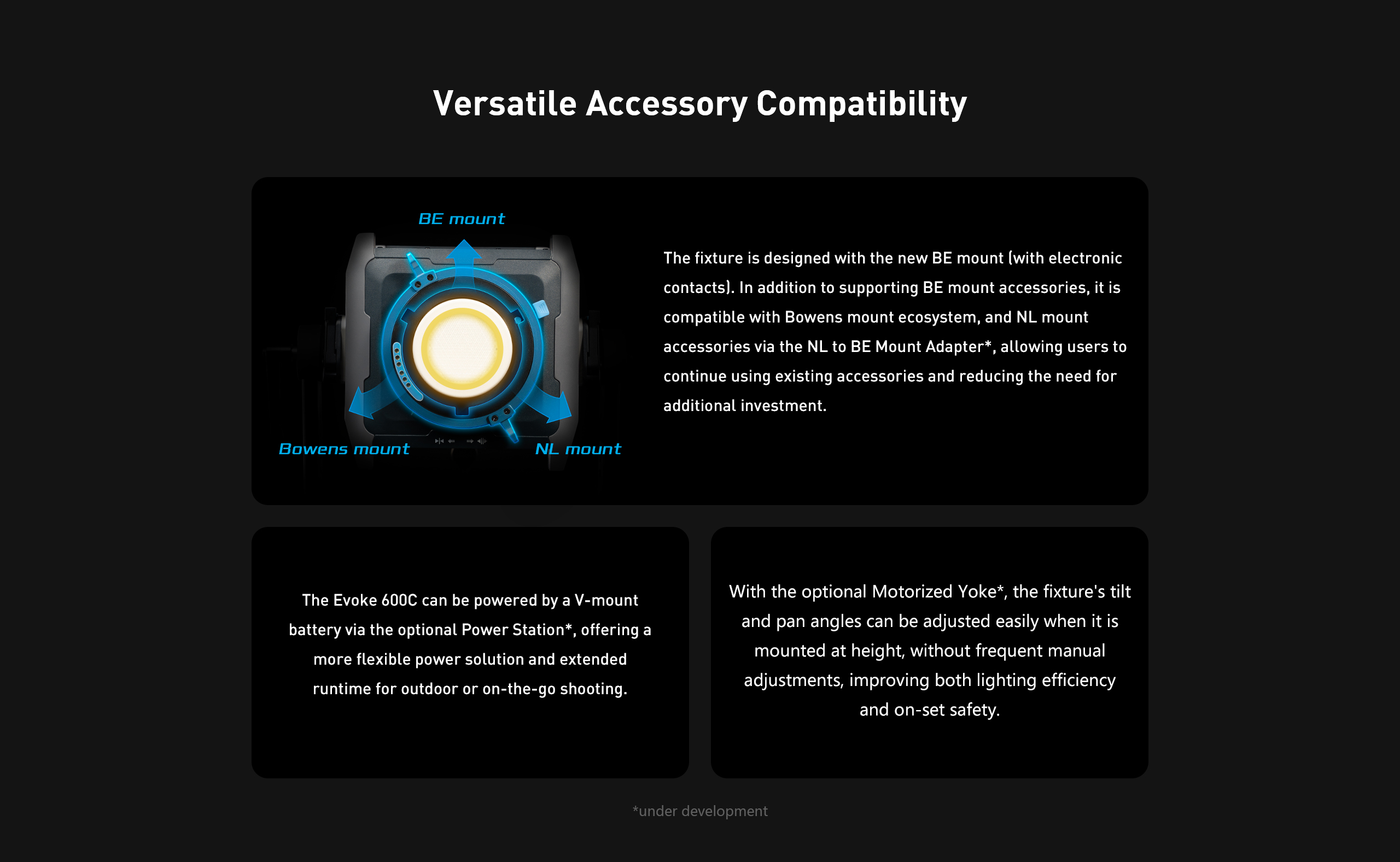

Consider reflectors (25° shown in spec sheet), softboxes or diffusion grids for key-light applications, wireless CRMX receivers/transmitters if needed, stands/trusses rated for the weight, and weather-proofing gear if shooting outdoors.

Final Thoughts

For professionals seeking a high-end LED fixture that offers power, precision, flexibility and robustness, the Nanlux Evoke 600C is a compelling choice. Whether you’re lighting a controlled studio setup, an outdoor shoot in variable conditions, or a complex multi-light scenario requiring full networked control and superb colour fidelity, this unit delivers.
