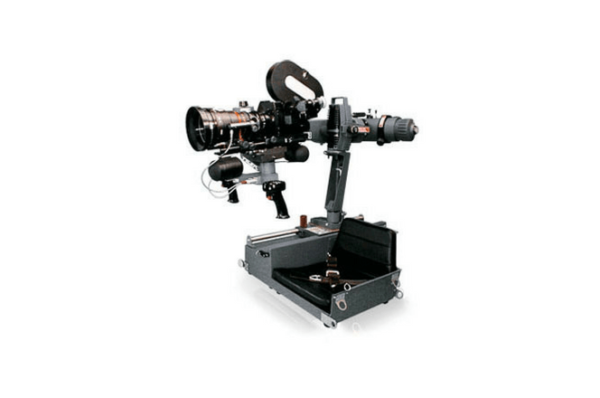

TYLER MIDDLE/SIDE GYRO MOUNT

Side Mount (Door Mount)
Inertia dampened, three axis, brute force gyro-stabilized camera mounts with side POV

Side Mounts are used for tracking or pirouette shots. Featuring 100 degrees of pan, tilt and roll, side mounts are ideal for air-to-ground or air-to-air, scenic or high-action sequences.

Optimum Camera Types

35 & 16mm
Arriflex 435, 235, 35-3, 416, 16SR 3 or 2, & Panavision
VideoAll industrial hand-held type.
Focal Range: 15-250mm Point-of-View: Side (left or right) Max. Cam. wt.: 60 lbs.Movement: Pan, Tilt & Roll 100 deg. (ea.) Install time: 30 min. Stabilization: Brute Gyros

Additional Features:

  • Direct, through-the-eyepiece viewing for optimum focusing and framing
  • Quick in-flight magazine/video tape and filter changes
  • Controls for smooth, slow to high-speed zooming, focus and camera run
