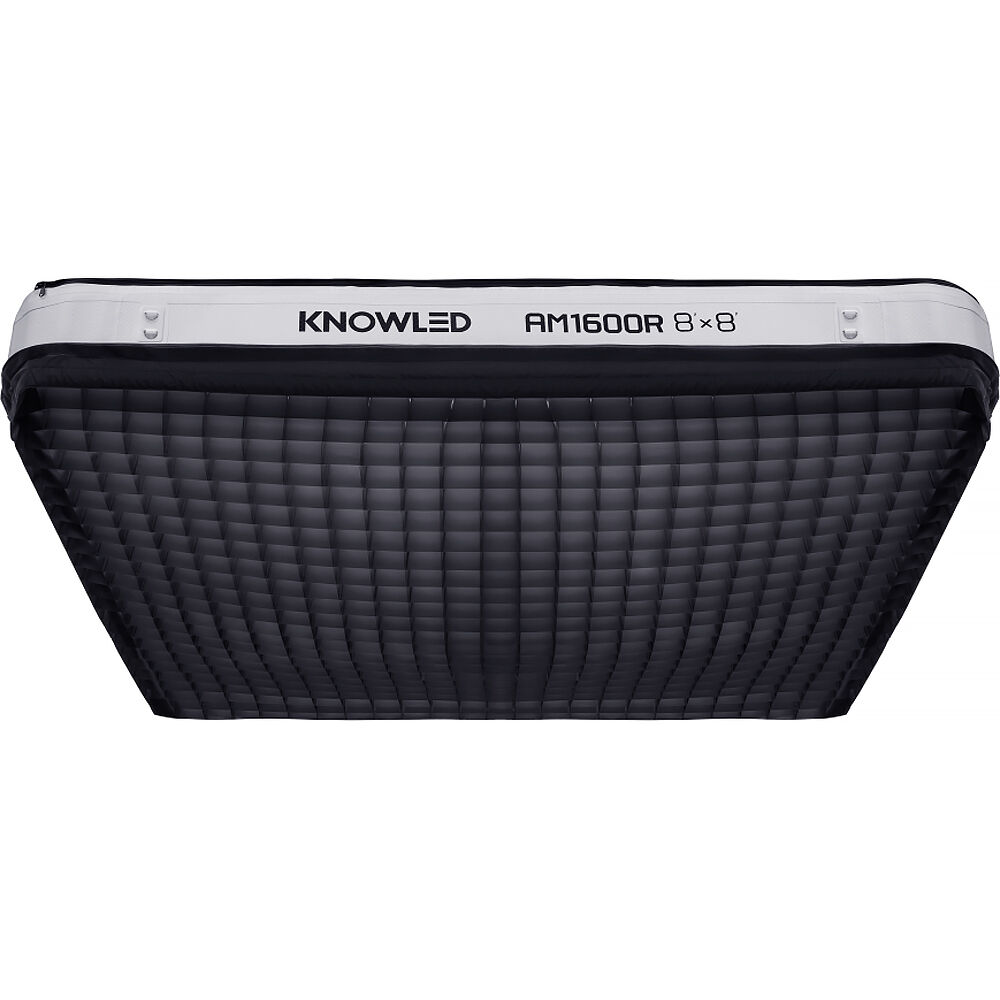

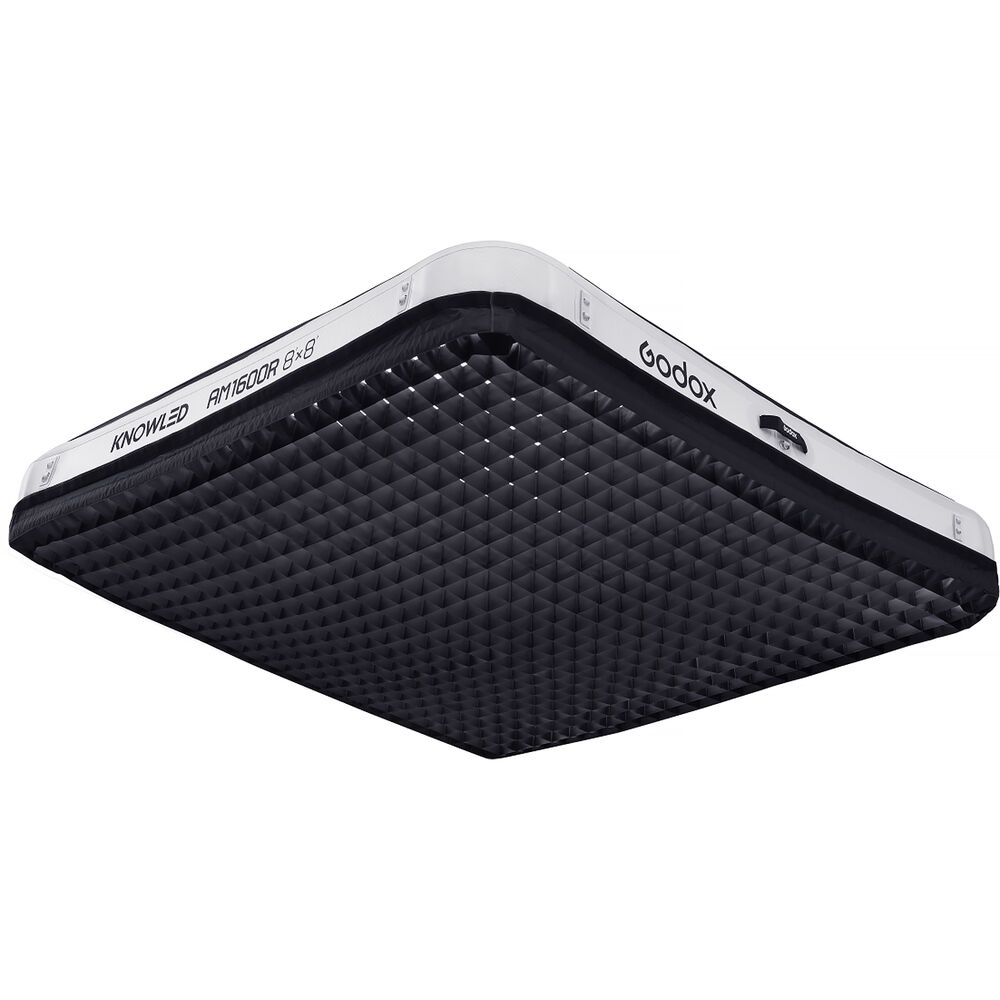

The Godox KNOWLED AM1600R RGB Inflatable LED Light Mat 8 x 8′ delivers powerful, beautifully diffused full-color illumination for large-scale film and television productions. Distinctive, foldable, and quick to assemble, this expanded 8 x 8′ model is larger—and consequently heavier—than the 4 x 8′ version, making it ideal for bigger sets that require broad, even coverage.

At the heart of the AM1600R is a durable inflatable butterfly frame designed for safe overhead suspension without truss support. The IP54-rated fixture inflates quickly to 8 PSI and can remain suspended for up to 15 days without reinflation or deformation. Its exceptionally airtight structure helps reduce setup and maintenance time throughout extended productions.

The AM1600R offers a wide CCT range of 1800 to 10,000K, full-color control, precise green/magenta correction, multiple lighting modes, and 14 built-in effects. It also includes a comprehensive collection of modifiers—including a soft film, two diffusers, a pancake lantern, grid, and skirt—giving lighting designers exceptional control over softness, direction, and spill.

Godox includes the controller box, air pump, repair kit, mounting hardware, modifiers, and other essential accessories in a rugged flight case for convenient transportation and storage.

Full-Color Control, Precise Dimming, and Universal Power

The AM1600R provides comprehensive color management through CCT, HSI, RGBW, GEL, and FX operating modes. Green/magenta adjustment from -100 to +100% enables precise tint correction for matching other fixtures or balancing ambient light.

Brightness can be adjusted from 0 to 100% using thousand-bit dimming control. Four dimming curves—linear, S-curve, exponential, and logarithmic—allow the fixture’s response to be tailored to the production. Users can also select default, smooth, or off smoothing settings.

The fixture operates with the included controller box and supports universal 100 to 240 VAC power for use in productions worldwide.

Advanced Control Options

Designed for demanding professional environments, the AM1600R supports multiple industry-standard wired and wireless control methods:

• Wired DMX512
• RDM
• Wireless LumenRadio CRMX
• Art-Net via Ethernet
• sACN via Ethernet
• Bluetooth control
• NFC connectivity

For straightforward setups, the included controller box provides convenient onboard operation with NFC connectivity. The fixture can also be controlled over Bluetooth from up to 196′ away using the Godox Light or Godox KNOWLED mobile apps.

Multi-Light Synchronization and 14 Built-In Effects

Multi-light synchronization and real-time adjustment make it easy to coordinate several fixtures across complex lighting setups. The AM1600R’s FX mode includes 14 preprogrammed effects:

• Flash
• Lightning
• Cloudy
• Broken Bulb
• TV
• Candle
• Fire
• Firework
• Explosion
• Welding
• Cop Car
• SOS
• RGB Cycle
• Party

These effects provide fast, repeatable lighting simulations without requiring additional programming or equipment.

Foldable, Versatile, and Expandable Design

The foldable light body improves portability while supporting customized configurations for a variety of production environments. The fixture can be safely rigged overhead without truss support, providing a reliable large-scale soft-lighting solution for studio and location work.

Touch fasteners and D-rings positioned on the back of the light body allow multiple panels to be connected, making it possible to create larger extended lighting structures when needed.

IP54 Protection and Exceptional Airtightness

Both the light and its controller are IP54 rated, providing protection against dust and moisture in challenging indoor and outdoor environments. The AM1600R is engineered for structural strength, scratch resistance, abrasion resistance, and dependable airtightness.

If the inflatable butterfly frame develops a leak, the included repair kit enables quick on-set repairs with minimal disruption.

Secure Rigging and Comprehensive Light-Shaping Accessories

Once inflated, the AM1600R can remain securely rigged for up to 15 days without deformation or reinflation. This eliminates the need to repeatedly assemble and remove the fixture from overhead positions, helping production crews maintain a more efficient workflow.

The included detachable modifiers can be used individually or combined for greater creative control:

• Two stackable diffuser cloths with different diffusion levels
• Soft film
• Pancake lantern
• Grid
• Skirt

The two diffusers provide varying degrees of softness, while the grid and skirt help control directionality and unwanted light spill. The included soft film further expands the fixture’s light-shaping options.

Additional Features

• Normal, low-end, and high-speed control modes
• Power-limit settings
• Network settings
• Control-locking functionality
• Preset settings
• Original gamut, correction gamut, Rec. 709, and DCI-P3 color-space options
• USB-A port for firmware updates
• Included stand-mounting bracket for the controller box
• Robust flight case for transport and storage
